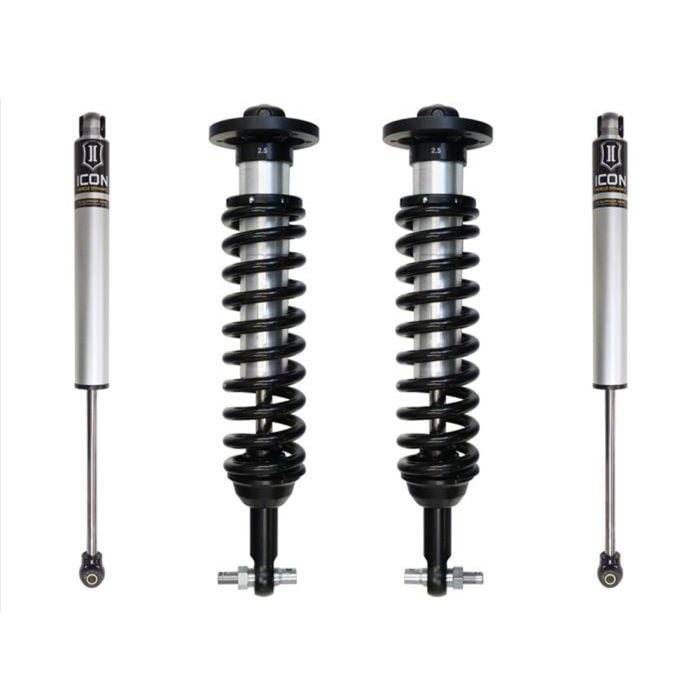

ICON Vehicle Dynamics Stage 1 Suspension System 0-3" Lift 2WD F-150 2015-2020

The unique valving of this Stage 1 Suspension System by ICON Vehicle Dynamics accommodates the lightweight nature of 2015-2020 Ford F-150s with 2-wheel drive, offering an increase in wheel travel without altering your truck's towing capacity. It's made in the USA and is designed for a 100% bolt-on installation with no cutting, drilling, or welding!

Features and Benefits:
- Stage 1 Suspension System for 2WD trucks
- Increases wheel travel over stock without changing towing capacity
- Unique valving developed for your truck's light weight
- Vehicle-specific tuned front & rear shocks offer superior damping
- Adjustable coilovers offer 0" to 3" lift height
- 6061 aircraft-grade CNC-machined aluminum shocks
- 7/8" shock shaft with corrosion-resistant CAD-plated body
- Strong CNC-machined alloy lower bar pin
- FK rod end bearings extend longevity and minimal deflection
- 2.0 aluminum body IFP rear shock with 5/8" induction-hardened shaft
- 100% bolt-on installation with no drilling, cutting, or welding
- Made in the USA

This suspension system (K93091) provides a suspension lift of up to three inches (3") in the front and rear. This allows for larger tires and a more well-balanced performance on any road or aggressive off-road trail. It does this using CNC-machined aluminum coilover shocks with 7/8" shafts and corrosion-resistant CAD-plated bodies. These 2-1/2" shocks are specifically designed for your truck and use an internal reservoir to keep them cooler longer.

Additional Information:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.00" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Only compatible with rear wheel drive (2WD/RWD) models.
- Lift heights above 2" over stock may require aftermarket front upper control arms to maintain proper alignment.
- Models equipped with Power-Stroke diesel engines will have a lift height range of 0" to 2-1/2" over stock.
- Included rear shocks are compatible with 0" to 1" of rear lift over stock on most models.
- Ships in multiple boxes.

Vehicle Fitment:
- 2015-2020 Ford F-150 with 2WD
