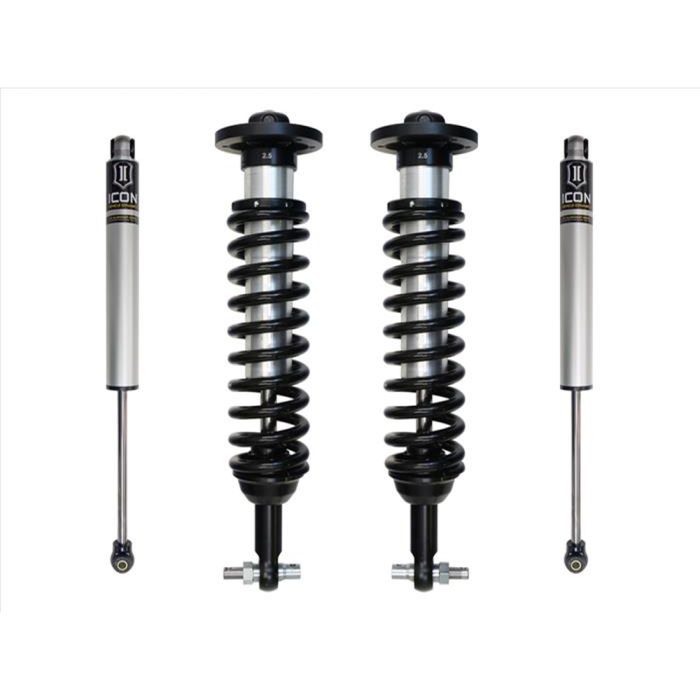

ICON Vehicle Dynamics Stage 1 Suspension System 4-Wheel Drive F-150 2021-2023

Push the limits of your 2021-2023 F-150’s performance both on and off the road with this Stage 1 Suspension System, courtesy of ICON Vehicle Dynamics! By equipping the system with front and rear shocks part of the 2.0 Aluminum series, your truck gains an immaculate boost in ride quality. Each one is specially tuned and valved to the lighter weight of the 2021+ F-150, evenly dividing the load among the front and rear. Coupled with the fresh cooling the internal reservoirs offer, they cultivate exceptional damping and overall performance.

Features and Benefits:
- 2.0 Aluminum series, monotube shocks
- Features internal reservoirs & 5/8” polished shaft
- Shocks specially tuned & valved to 2021-2022 F-150
- Stellar damping & vehicle control on/off-road
- Increased wheel travel & refined ride quality
- Retains normal towing capacity
- Corrosion-resistant, CAD-plated, coilovers w/ 7/8” shaft
- Coilovers bear adjustable lift height of 0” to 2-3/4”
- Components CNC-machined from 6061 aircraft-grade aluminum
- Lower bar pin built from high-strength, CNC-machined alloy
- FK rod end bearings boost longevity & minimize deflection
- 100% bolt-on installation w/o cutting/welding

To complement the shocks, the system boasts coilovers with a 7/8” shaft, CAD-plated to stand strong against corrosion. Thanks to them, drivers can sport a maximum of 2-3/4” in lift height, welcoming aggressive wheel and tire combos. Save for the high-strength alloy of the lower bar pin, each component is CNC-machined from aircraft-grade aluminum. When united, it makes the system a worthy contender that increases wheel travel without compromising towing capacity.

Vehicle Fitment:
- 2021-2023 Ford F-150
- For 4-wheel drive applications ONLY
*Will NOT work with Tremor or Raptor trims
*NOT compatible with BlueCruise models
*Does NOT work with factory-installed, electronically controlled suspension

Additional Notes:
- OEM wheels & tires fitment: yes
- Recommended aftermarket wheels: 17x8.5" w/ 5” backspace / 6mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.25" backspace / 6mm offset
- Recommended aftermarket wheels: 20x9" w/ 5.625" backspace / 16mm offset
- Recommended aftermarket tires: 33" x 11.50"
- Larger tires may fit but fender trimming and modifications will be required.
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Lift heights 2” above stock may require aftermarket front upper control arms to maintain proper alignment.
- For models with a PowerBoost hybrid engine, the lift height range will be 0” to 2-1/2” over stock.
- For models with a Power-Stroke diesel engine, the lift height range will be 0” to 2-1/4” over stock.
- Included rear shocks are compatible with 0” to 1" of rear lift over stock on most models.
