ICON Vehicle Dynamics Stage 1 Suspension System Lift 4WD F-150 2009-2013

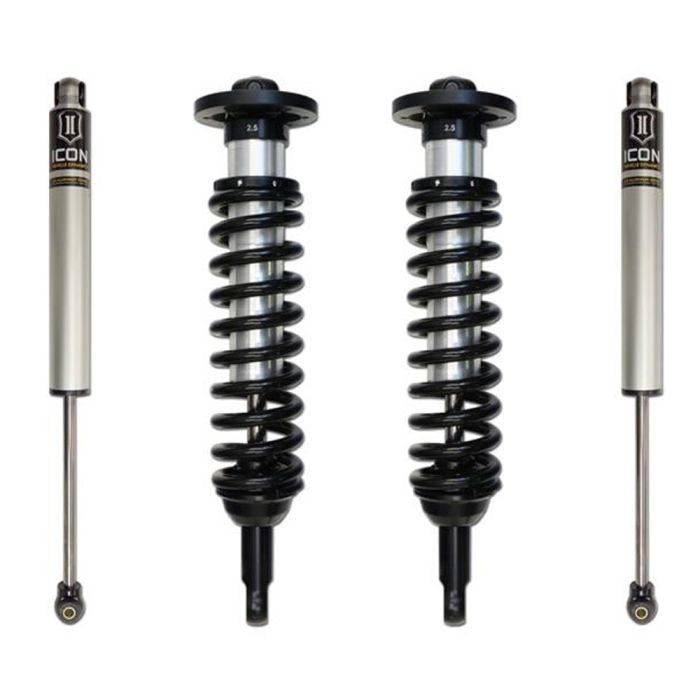

When it comes to upgrading your 2009-2013 F-150s suspension system, the ICON Vehicle Dynamics Stage 1 Lift Suspension System (K93001) is the ultimate solution. With an adjustable lift height of 0-2.63 inches, this system provides exceptional wheel travel and ride quality over the factory installation. The unique valving of the front and rear shocks is developed specifically for these model years, ensuring optimal control and damping.

Features and Benefits:
- Increased wheel travel and ride quality over stock
- Vehicle-specific tuned front and rear shocks
- Retains maximum towing capacity
- Unique valving developed for 2009-2013 F-150s
- Superior damping and control
- Exceptional cooling properties
- Adjustable 0-2.63” lift height
- 6061 aircraft-grade aluminum CNC machined components
- Corrosion-resistant CAD-plated shock bodies with 7/8” diameter shafts
- High-strength alloy CNC machined lower bar pins
- ICON-engineered Eibach coil springs
- 2.0 aluminum body IFP rear shock with 5/8" polished shaft
- FK rod end bearings for extended longevity and minimal deflection
- Direct bolt-on installation with no cutting or welding required
- Made in the USA

The corrosion-resistant CAD-plated shock bodies and alloy lower bar pins guarantee longevity in even the roughest driving conditions. Plus, with no cutting or welding required, installation is a breeze. Invest in the best for your 4WD F-150 and experience superior performance with this made-in-the-USA suspension system.

Vehicle Fitment:
- 2009-2013 Ford F-150s
- Fits 4WD models

Additional Notes:
- OEM wheels and tire fitment: yes
- Recommended aftermarket wheels: 17x8.5" w/ 5.00” backspace / 6mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.25" backspace / 6mm offset
- Recommended aftermarket wheels: 20x9" w/ 5.625" backspace / 16mm offset
- Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Ships in multiple boxes.
