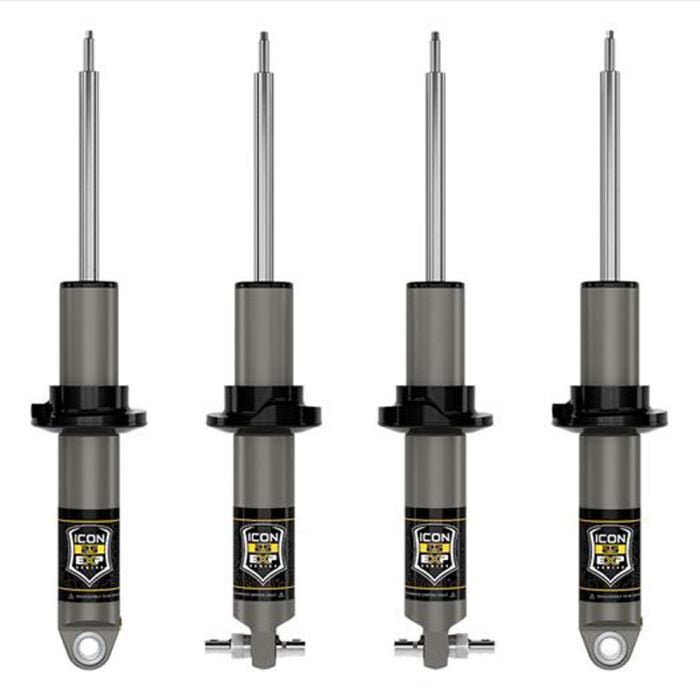

ICON Vehicle Dynamics Stage 1 Suspension System for HOSS 2.0 Bronco 21-26

Elevate the already powerful HOSS 2.0 suspension package on your 2021-2026 Bronco by combining its coils with the ICON Vehicle Dynamics Stage 1 Suspension System! This system is comprised of four 2.5 Aluminum series EXP shocks, each expressly tuned and valved to the 2021-2026 Bronco with HOSS 2.0. Not only does it guarantee a balanced weight at both ends, but it also leads to excellent damping performance. Together with the constant cooling from the internal reservoirs, it enriches your Bronco’s ride quality both on and off the road.

Features and Benefits:
- (4) 2.5 Aluminum series EXP shocks w/ internal reservoirs
- Shocks specially tuned & valved to 2021-2023 Broncos w/ HOSS 2.0
- Adjustable height: 0” to 2” in front, 0” to 1-3/4” in rear
- Stellar damping & heat dissipation in one-piece, digressive piston
- Increased wheel travel & refined ride quality
- Chrome-plated, induction-hardened, 7/8” diameter, inverted shafts
- One-piece, impact-extruded, hard anodized cylinders
- Components CNC-machined from 6061 aircraft-grade aluminum
- PTFE-lined spherical bearings minimize deflection
- Reuses factory coils & coil hardware
- 100% bolt-on installation w/o cutting/welding
- Fully rebuildable & re-tunable

For extra damping support, the system boasts a one-piece, digressive piston and spherical bearings lined with PTFE to curtail deflection. They work like a charm no matter the lift height you decide on, offering 0” to 2” of adjustability in the front and 0” to 1-3/4” in the rear. An exceptional way to boost your wheel travel, the system bolts on in a completely cut and weld-free installation process. Fully rebuildable and re-tunable as well, enthusiasts get the ultimate experience with the freedom of in-depth tuning.

Vehicle Fitment:
- 2021-2026 Ford Bronco
- For models with the factory HOSS 2.0 suspension package
- Fits base, Big Bend, Outer Banks, & Black Diamond trims WITH Sasquatch package
*NOT compatible with Bronco Raptors

Additional Notes:
- OEM wheels & tires fitment: yes
- Recommended aftermarket wheels (with Sasquatch package): 17x8.5" w/ 4.75” backspace / 0mm offset
- Recommended aftermarket wheels (with Sasquatch package): 18x9" with 5" backspace / 0mm offset
- Recommended aftermarket wheels (with Sasquatch package): 20x9" with 5" backspace / 0mm offset
- Recommended aftermarket tires (with Sasquatch package): 35" x 12.50"
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- When running 35” tires on a non-Sasquatch model, it is recommended you use high-clearance crash bars (P/N: 42000), sold separately.
- 37” tires will require coilover bump stop spacers along with trimming and modifications. Removal of the crash bar may also be required but it is not recommended.
- When running 37” tires, ICON Vehicle Dynamics recommends using their bump stop spacer kit in the front (P/N: 611082), sold separately.
- 2-door models will sit taller than 4-door models.
- Lift heights 1-1/2” over stock may require aftermarket front upper control arms to maintain ideal front end alignment.
