ICON Vehicle Dynamics Stage 1 Suspension System HOSS 1.0 Bronco 21-26

ICON Vehicle Dynamics’ Stage 1 Suspension System enhances the handling and offroad performance of your 2021-2026 Bronco with a HOSS 1.0 suspension package. The kit includes new aluminum Series EXP shocks with internal reservoirs for better handling offroad and reliability. The suspension system uses the original coils and hardware to make the swap easier. Each shock features a one-piece design for increased rigidity and utilizes an inverted shaft up design and chrome-plated shafts to reduce shock across the system. You can easily adjust the ride height by using included snap rings for the perfect ride height when heading offraod. Each shock is fully rebuildable and returnable, so you can use them for years to come. ICON Vehicle Dynamics manufactures its Stage 1 Suspension System right here in the USA.

Features and Benefits:

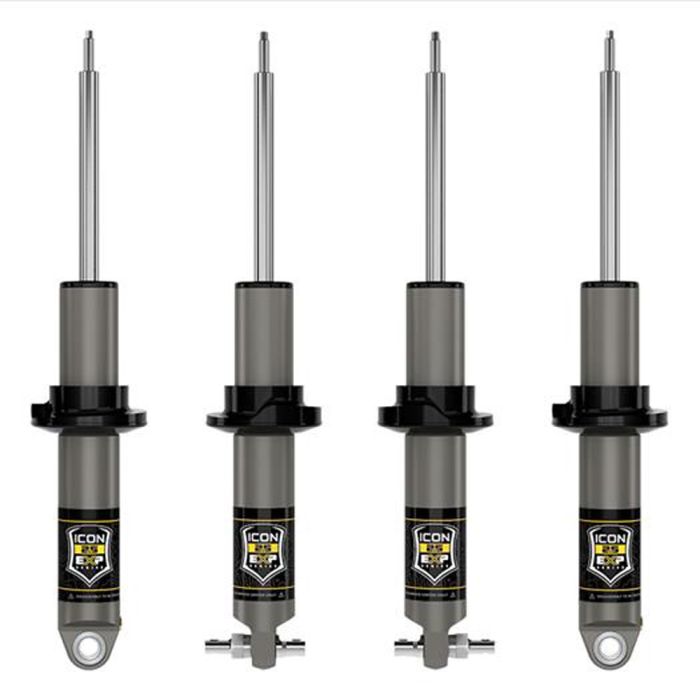

- Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
- Adjustable ride heights from 1.375-3” of front lift and 1.5-2.25" of rear lift over stock with the use of snap rings
- Utilizes factory coils and coil hardware
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shafts
- One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
- 100% Bolt-on - No Cutting or Welding Necessary for Installation
- Fully Rebuildable and Re-Tunable
- Made in the USA

Additional Information:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 6.00" Backspace / 25mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
- Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- 2 Door Models Will Sit Taller Than 4 Door Models.
- Recommend High Clearance Crash Bars Part #42000 On Non-Sasquatch Equipped Vehicles When Running 35" Tires
- When Running 37" Tires Crash Bar Removal May Be Required But Is Not Recommended
- When Running 37" Tires Use Bump Stop Spacer Kit Part #611082 In The Front
- Only compatible with Ford Broncos equipped with HOSS 1.0 Suspension Package
- Lift heights above 2” over stock may require aftermarket front upper control arms to maintain ideal front end alignment

Vehicle Fitment:
- Fits 2021-2026 Bronco
- Fits Base, Big Bend, Outer Banks, and Black Diamond trim levels

*ONLY fits trims without Sasquatch package.
*NOT compatible with Bronco Raptor.
