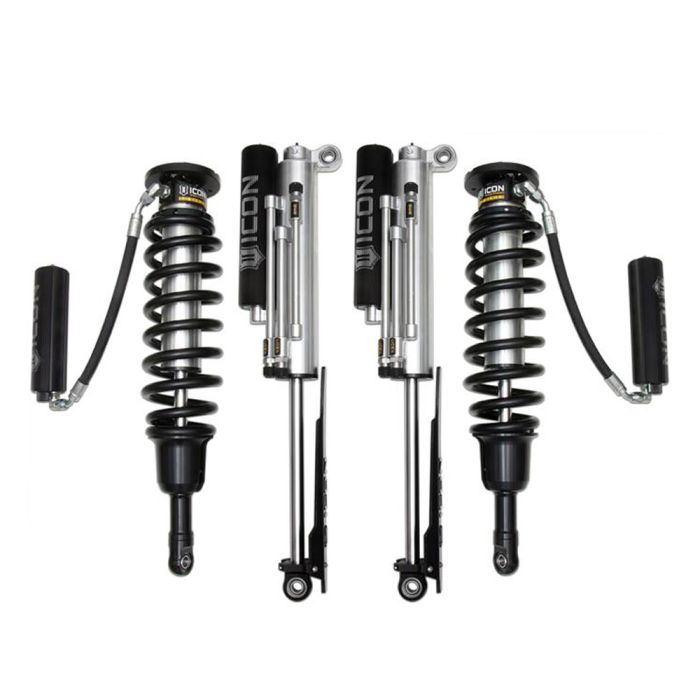

ICON Vehicle Dynamics Stage 1 Suspension System Raptor 2017-2020

ICON Vehicle Dynamics custom-tailored the Stage 1 Suspension System to offer your 2017-2020 Raptor with top-of-the-line ride quality and handling performance. ICON engineers approached the Raptor as a whole, focusing on maximizing wheel travel and improving ride quality. The result is a suspension system designed by a single company to work seamlessly for the best possible performance available.

Features & Benefits:
- 3.0 Series Adjustable Coilover Shock
- Adjustable Coilovers Yield 1-3” Front-End Lift
- Increased Wheel Travel
- Vehicle-Specific Valving
- 50% Increase in Damping Over OE Shocks
- Superior Low Speed Control
- Reduced Body Roll in Corners
- Easy-to-Adjust Compression Damping Control Valve
- 10 Compression Damping Settings
- Multi-Stage Hydraulic “Bump Zone”
- Finned Aluminum Reservoirs
- Barreled Coil Spring Design
- High-Quality ICON-Engineered Coil Springs
- CNC-Machined 1” Shock Shafts
- CAD Plated Shock Body
- Hard Anodized Piston & Top Cap
- Made in the USA

In the front, the included 3.0 Series adjustable coilovers yield 1-3” of lift over the stock height while providing increased shaft travel and a barreled coil spring for improved packaging efficiency. Each 3.0 Series coilover uses a significantly larger piston than the factory shocks for 50% increased damping ability.  A multi-stage “Bump Zone” provides an exponential increase in damping ability during the last 40% of compression travel for the improved bottom-out resistance. 10” finned aluminum reservoirs provide an abundance of shock oil to cover a larger surface area, improving cooling and consistent damping. ICON’s CDC Valve technology offers 10 settings, allowing users to fine-tune the damping for a preferred shock feel on any terrain or cargo configuration.

In the rear, an offset design allows the 3.0 Series bypass shock to maximize wheel travel while utilizing factory shock mounts. These shocks use three unique bypass zones—two on the compression stroke and one on rebound—to control the rear end in specific ranges of travel. Easy-to-adjust knobs allow users to dial in their ride without tools and with minimal down time. A patented Anti-Wobble Link stabilizes the shocks, preventing rotation and possible collision, while urethane shin guards protect the shock shafts and rod ends under intense off-road conditions.

Additional Information:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5” with 5.00” Backspace/6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace/6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625” Backspace/16mm Offset
- Recommended Aftermarket Tires 35”x12.50”
- Larger Tires May Fit with Fender Trimming & Modifications
- Fully-Serviceable Shocks. Indicated Coilover Heights for Stock-Equipped Vehicle.
- 2019-2020 Vehicles with Factory Live Valve Shocks Require an Icon Damper Interface Device (P/N: 95199) to Allow Vehicle Drive Modes to Operate Correctly with OE Shocks Removed.
