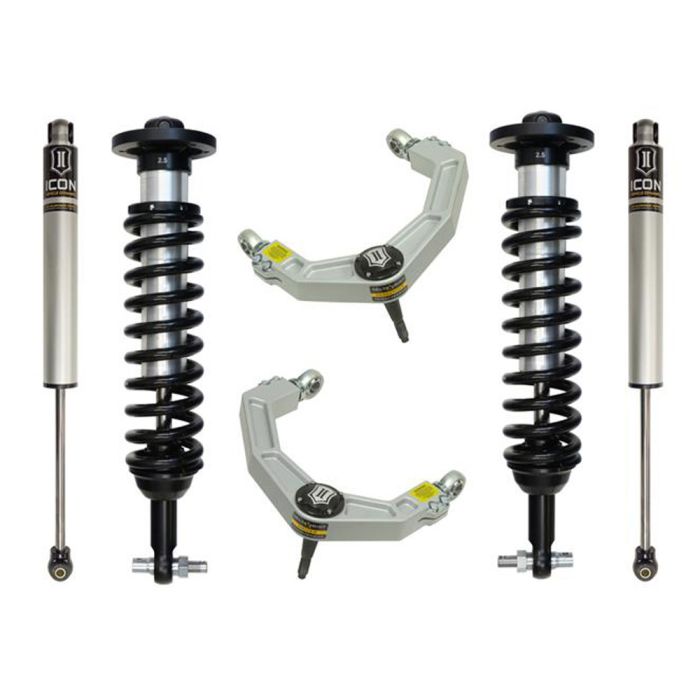

ICON Vehicle Dynamics Stage 2 Lift Suspension System Billet 4WD F-150 2014

ICON Vehicle Dynamics’ Billet Stage 2 Suspension System upgrades the suspension for 2014 4WD F-150 with a fully adjustable suspension system. This system is designed to increase wheel travel and substantially improve the ride quality of your truck compared to the stock system. Custom-tuned and adjustable coilovers enable you to adjust the ride height of your F-150 for better performance on trails. Height ranges from 0-2.63" of lift height, providing great options for your specific driving needs. This kit also includes billet aluminum upper control arms for added strength, durability, and alignment spec range. ICON Vehicle Dynamics manufactures their Billet Stage 2 Suspension System right here in the USA.

Features and Benefits:
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Adjustable coilovers provide 0-2.63" of lift height
- Billet aluminum upper control arms for added strength, durability, adjustability, and improved alignment geometry
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- High strength alloy CNC machined lower bar pin
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 aluminum body IFP rear shock with 5/8" polished nitro steel shaft
- 100% bolt-on system - no drilling, cutting or welding necessary for install

Vehicle Fitment:
- Fits 2014 F150
- Fits 4wd models

Technical Information:
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- Only compatible with 4-wheel drive (4WD) models
- Included rear shocks are compatible with 0-1" of rear lift over stock on most models
- Not compatible with models equipped with CNG or LPG fueled engines
