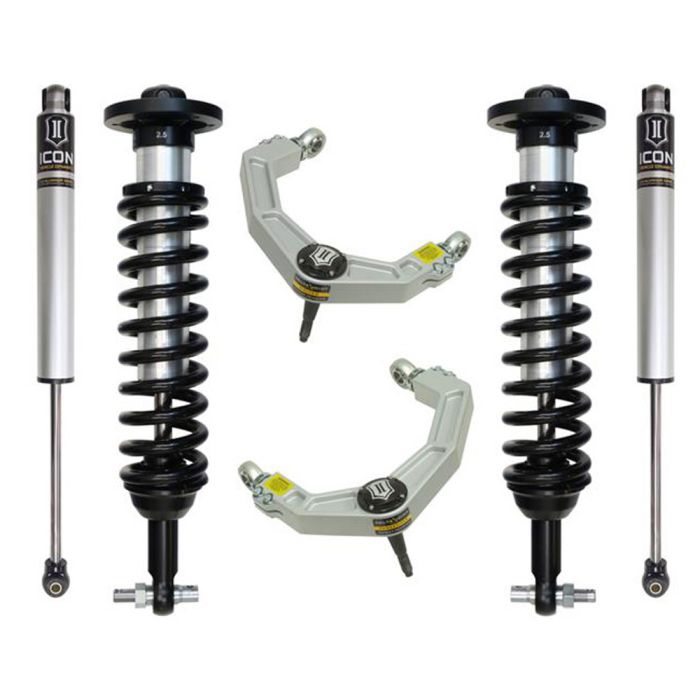

ICON Vehicle Dynamics Stage 2 Suspension System Lift Billet 2WD F-150 2015-2020

The ICON Vehicle Dynamics Stage 2 Tubular Lift Suspension System (K93092) is an impressive upgrade for anyone serious about improving their 2015-2020 F-150s performance. Developed specifically for the 2015-2020 F-150s, the suspension system offers increased wheel travel and ride quality over stock while retaining maximum towing capacity. The unique valving of the front and rear shocks provides superior damping and control, and the FK rod end bearings ensure extended longevity and minimal deflection.

Features and Benefits:
- Increased wheel travel and ride quality over stock
- Retains maximum towing capacity
- FK rod end bearings for extended longevity and minimal deflection
- Unique valving developed specifically for the lighter weight of the 2015-2020 F-150
- Vehicle-specific tuned front and rear shocks
- Superior damping and control
- Billet UCAs for added strength, durability, and alignment geometry
- Adjustable coilovers provide 0-3” over stock
- 6061 aircraft-grade aluminum CNC machined components
- Corrosion-resistant CAD-plated shock bodies with 7/8” shaft
- High-strength alloy CNC machined lower bar pins
- ICON 2.0” Aluminum Series monotube rear shocks
- Hard anodized, impact-extruded aluminum cylinders
- Delta Joint combines uniball performance with ball joint durability
- Direct bolt-on installation with no cutting or welding required
- Made in the USA

Made from 6061 aircraft-grade aluminum CNC machined components, this suspension system is tough and even offers up to 3" of lift height over stock. The system also includes billet UCAs for added strength, durability, and alignment geometry, as well as corrosion-resistant CAD-plated shock bodies with a 7/8" shaft. High-strength alloy CNC machined lower bar pins and ICON 2.0" Aluminum Series monotube rear shocks round out the system.

Vehicle Fitment:
- 2015-2020 F-150s
- Fits 2WD models

Additional Notes:
- OEM wheels and tire fitment: yes
- Recommended aftermarket wheels: 17x8.5" w/ 5.00” backspace / 6mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.25" backspace / 6mm offset
- Recommended aftermarket wheels: 20x9" w/ 5.625" backspace / 16mm offset
- Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Only compatible with OE spindles. Do not install in combination with any aftermarket spindles.
- Only compatible with 2-wheel drive (2WD/RWD) models.
- Models equipped with Power-Stroke diesel engines will have a lift height range of 0-2.5” over stock.
- Included rear shocks are compatible with 0-1" of rear lift over stock on most models.
- Ships in multiple boxes.
