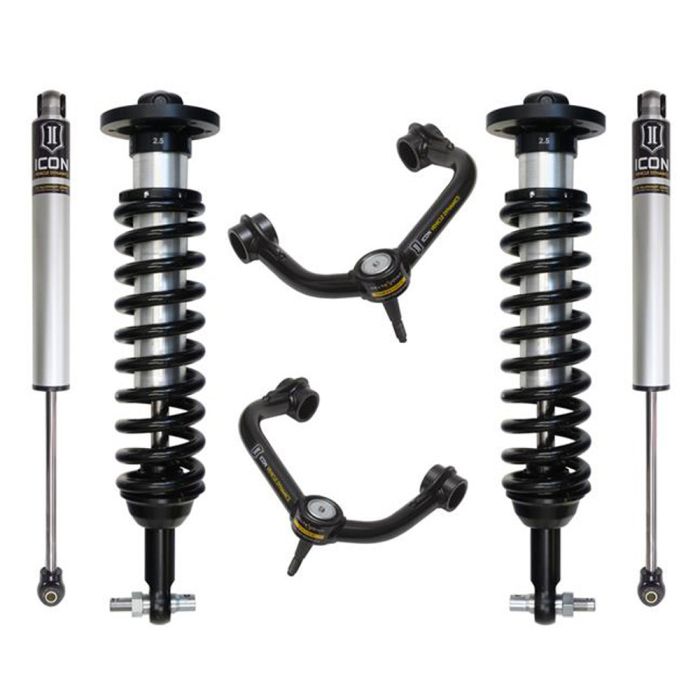

ICON Vehicle Dynamics Stage 2 Suspension System Lift Tubular 2WD F-150 2015-2020

The ICON Vehicle Dynamics Stage 2 Tubular Lift Suspension System (K93092T) is a premium upgrade for 2015-2020 F-150s with 2WD. This suspension system offers increased wheel travel and ride quality over stock but still retains maximum towing capacity for those who need it. The use of FK rod end bearings ensures extended longevity and minimal deflection, while the unique valving developed specifically for the lighter weight of the F-150 provides superior damping and control. The vehicle-specific tuned front and rear shocks also provide added strength, durability, and alignment geometry.

Features and Benefits:
- Increased wheel travel and ride quality over stock
- Retains maximum towing capacity
- FK rod end bearings for extended longevity and minimal deflection
- Unique valving developed specifically for the lighter weight of the 2015-2020 F-150
- Vehicle-specific tuned front and rear shocks
- Superior damping and control
- Tubular UCAs for added strength, durability, and alignment geometry
- Adjustable coilovers provide 0-3” over stock
- 6061 aircraft-grade aluminum CNC machined components
- Corrosion-resistant CAD-plated shock bodies with 7/8” shaft
- High-strength alloy CNC machined lower bar pins
- ICON 2.0” Aluminum Series monotube rear shocks
- Hard anodized, impact-extruded aluminum cylinders
- Delta Joint combines uniball performance with ball joint durability
- Direct bolt-on installation with no cutting or welding required
- Made in the USA

The adjustable coilovers offer a lift height range of 0-3” over stock, while the corrosion-resistant CAD-plated shock bodies with 7/8” shaft and high-strength alloy CNC machined lower bar pins add to the overall durability of the system. To ensure maximum performance, ICON 2.0” Aluminum Series monotube rear shocks with hard anodized, impact-extruded aluminum cylinders are also included. This made-in-the-USA system is a serious upgrade for those looking to elevate their 2015-2020 F-150s to the next level of performance and durability.

Vehicle Fitment:
- 2015-2020 F-150s
- Fits 2WD models

Additional Notes:
- OEM wheels and tire fitment: yes
- Recommended aftermarket wheels: 17x8.5" w/ 5.00” backspace / 6mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.25" backspace / 6mm offset
- Recommended aftermarket wheels: 20x9" w/ 5.625" backspace / 16mm offset
- Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Only compatible with OE spindles. Do not install in combination with any aftermarket spindles.
- Only compatible with 2-wheel drive (2WD/RWD) models.
- Included tubular front upper control arms are optimized for front lift heights from 1.75-3" over stock.
- Models equipped with Power-Stroke diesel engines will have a lift height range of 0-2.5” over stock.
- Included rear shocks are compatible with 0-1" of rear lift over stock on most models.
- Ships in multiple boxes.
