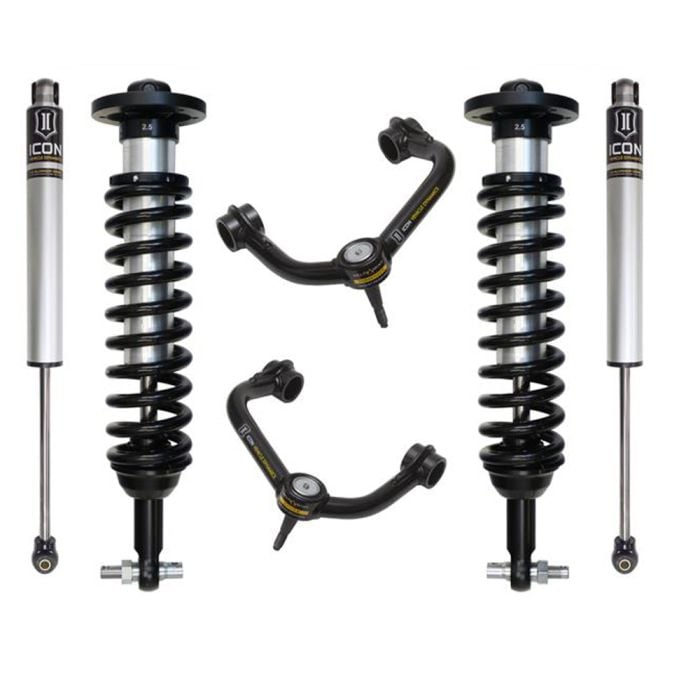

ICON Vehicle Dynamics Stage 2 Suspension System Lift Tubular 4WD F-150 2015-2020

Upgrading your 2015-2020 F-150s suspension system can have a serious impact on your ride quality, and the ICON Vehicle Dynamics Stage 2 Tubular Lift Suspension System (K93082T) does not disappoint. Developed specifically for the lighter weight of the F-150, this suspension system offers superior damping and control, unlike anything you've experienced in a stock truck. Not only does this system provide increased wheel travel and ride quality, but it retains maximum towing capacity, making it ideal for the serious truck owner.

Features and Benefits:
- Increased wheel travel and ride quality over stock
- Retains maximum towing capacity
- FK rod end bearings for extended longevity and minimal deflection
- Unique valving developed specifically for the lighter weight of the 2015-2020 F-150
- Vehicle-specific tuned front and rear shocks
- Superior damping and control
- Tubular UCAs for added strength, durability, and alignment geometry
- Adjustable coilovers provide 0-2.63” of lift height over stock
- 6061 aircraft-grade aluminum CNC machined components
- Corrosion-resistant CAD-plated shock bodies with 7/8” shaft
- High-strength alloy CNC machined lower bar pins
- ICON 2.0” aluminum body rear IFP shocks with 5/8” polished nitro steel shaft
- Hard anodized, impact-extruded aluminum cylinders
- Delta Joint combines uniball performance with ball joint durability
- Direct bolt-on installation with no cutting or welding required
- Made in the USA

Featuring FK rod end bearings for extended longevity and minimal deflection, this suspension system is built to last. The adjustable coilovers allow for up to 2.63" of lift height over stock, while tubular upper control arms provide added strength and durability. Installing this system is a breeze, thanks to the direct bolt-on design with no welding or cutting required.

Vehicle Fitment:
- 2015-2020 F-150s
- Fits 4WD models

Additional Notes:
- OEM wheels and tire fitment: yes
- Recommended aftermarket wheels: 17x8.5" w/ 5.00” backspace / 6mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.25" backspace / 6mm offset
- Recommended aftermarket wheels: 20x9" w/ 5.625" backspace / 16mm offset
- Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Only compatible with OE spindles. Do not install in combination with any aftermarket spindles.
- Only compatible with 4-wheel drive (4WD) models.
- Included tubular front upper control arms are optimized for front lift heights from 1.75-3" over stock.
- Models equipped with Power-Stroke diesel engines will have a lift height range of 0-2.13” over stock.
- Included rear shocks are compatible with 0-1" of rear lift over stock on most models.
- Ships in multiple boxes.
