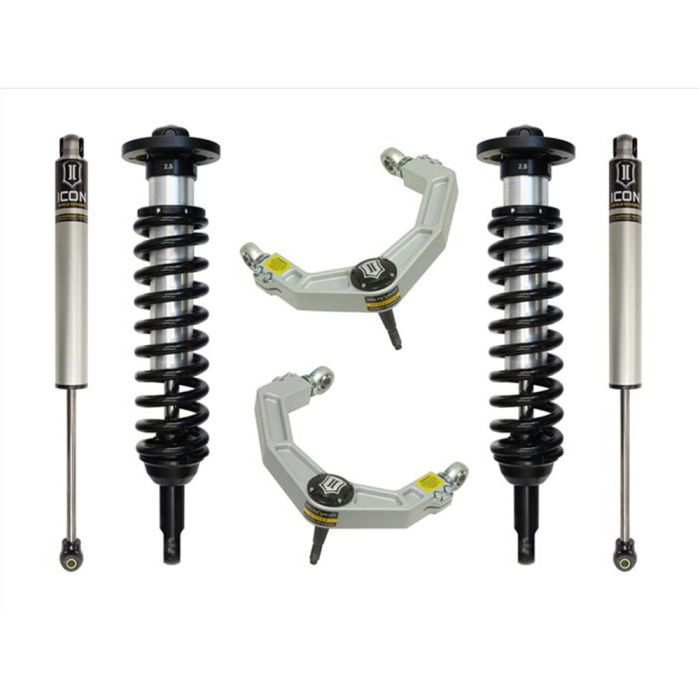

ICON Vehicle Dynamics Stage 2 Suspension System Billet 0-2.63” Lift 2WD F-150 2009-2013

The ICON Vehicle Dynamics Stage 2 Billet Suspension System is designed with front and rear coilovers shocks that have been tuned specifically for 2009-2013 2WD F-150s. The result is a significant suspension performance overhaul for exceptional handling and ride quality. Once installed, this kit will provide your F-150 with a ride height 0-2.63” over stock, allowing for larger and more aggressive wheel and tire setups, allowing you to tackle off-road terrain in confidence.

Features & Benefits:
- Heavy-Duty, High-Angle Delta Joint
- Increased Wheel Travel & Ride Quality Over Stock
- Improved Suspension Performance
- Retains Factory Towing Capacity
- Vehicle-Specific Tuned Front & Rear Shocks
- Superior Damping & Vehicle Control
- Adjustable Coilovers Yield 0-2.63” Lift Height
- ICON CDCV-Equipped Front & Rear Shocks
- Full Shock Compression Tuneability
- Billet Aluminum Upper Control Arms
- Additional Strength, Durability, Adjustability, & Improved Alignment
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Bodies with 7/8” Shafts
- FK Rod End Bearings for Extended Longevity & Minimal Deflection
- 2.5 Aluminum Rear Shocks, One-Piece Impact Extruded Aluminum Cylinders
- Excellent Corrosion Resistance & Consistent Finish
- Bolt-On System, No Cutting or Welding Necessary

This Suspension System includes billet upper control arms. Not only do these control arms provide additional strength and durability, but they’ll retain your factory alignment spec range for increased caster over stock. This system also features ICON’s patented Delta Joint, a heavy-duty high-angle ball joint that mixes the durability of a ball joint and the performance of a traditional uniball, for all-new performance and quality in one package.

Additional Information:
- OEM Wheels & Tires Fitment: Not Compatible with All OE Wheel/Tire Combinations. Aftermarket Wheels with Lower Offset/Less Backspace Recommended
- Recommended Aftermarket Wheels: 17x8.5” with 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625” Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33” x 11.50”
- Larger Tires May Fit with Fender Trimming & Modifications
- Shocks are Fully Serviceable
- Coilover Heights Indicated for Stock-Equipped F-150

Vehicle Fitment:
- 2009-2013 Ford F-150
- 2-Wheel Drive Models
