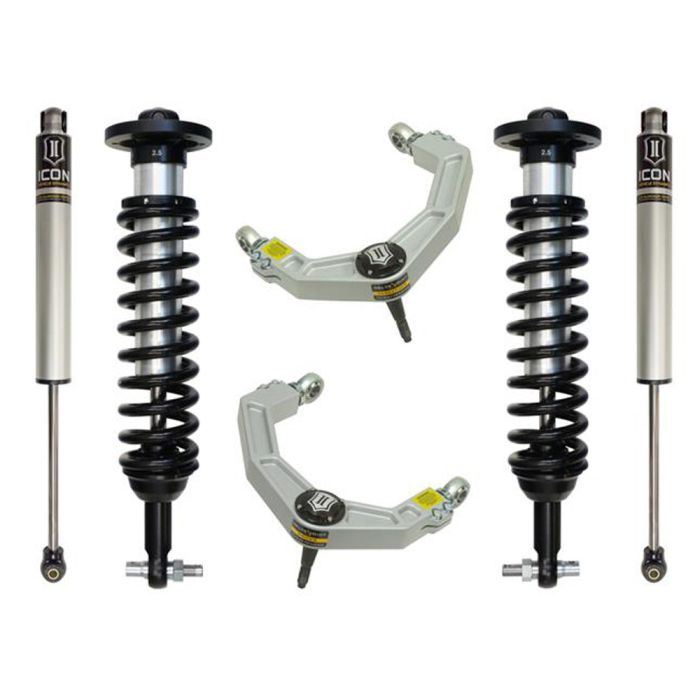

ICON Vehicle Dynamics Stage 2 Suspension System Billet 2WD F-150 2014

The ICON Vehicle Dynamics Billet Stage 2 Suspension System is designed to bring increased wheel travel and ride quality to your 2014 Ford F-150 without any change in towing capacity. Designed for maximum performance on 2WD models, the 2-1/2" coilover shocks are expertly tuned to your specific truck for precise damping and vehicle control while the corrosion-resistant CAD-plated coilover shock body with 7/8" shaft provides unmatched durability.

Features and Benefits:
- Designed for 2WD models
- Increased wheel travel and ride quality over stock with no change in towing capacity
- 2-1/2" coilover shocks tuned specifically for your truck for damping and vehicle control
- Corrosion-resistant CAD plated coilover shock body with 7/8" shaft
- Shocks have internal reservoirs for enhanced cooling
- Adjustable coilovers provide 0" to 2.63" lift for use with larger wheels/tires
- Adjustable billet aluminum upper control arms retain factory alignment
- CNC-machined 6061 aircraft-grade aluminum
- CNC-machined lower bar pin with exceptional strength
- FK Rod End bearings for extended longevity and minimal deflection
- 100% bolt-on installation with no drilling, cutting, or welding
- Made in the USA

The adjustable coilovers in this Stage 2 Suspension System (K93072) provide a 0" to 2.63" lift for use with larger wheels and tires, allowing you to customize your ride to your needs. This makes it ideal for trucks that frequent the highway and the trails! The adjustable billet aluminum upper control arms retain the factory alignment, and the CNC-machined 6061 aircraft-grade aluminum and lower bar pin offer exceptional strength and longevity. The FK Rod End bearings minimize deflection and prolong the lifespan of your vehicle. With a 100% bolt-on installation process, there's no need for drilling, cutting, or welding to install this USA-made suspension system to your F-150.

Tech Info:
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace are recommended.
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Ships in multiple boxes.
