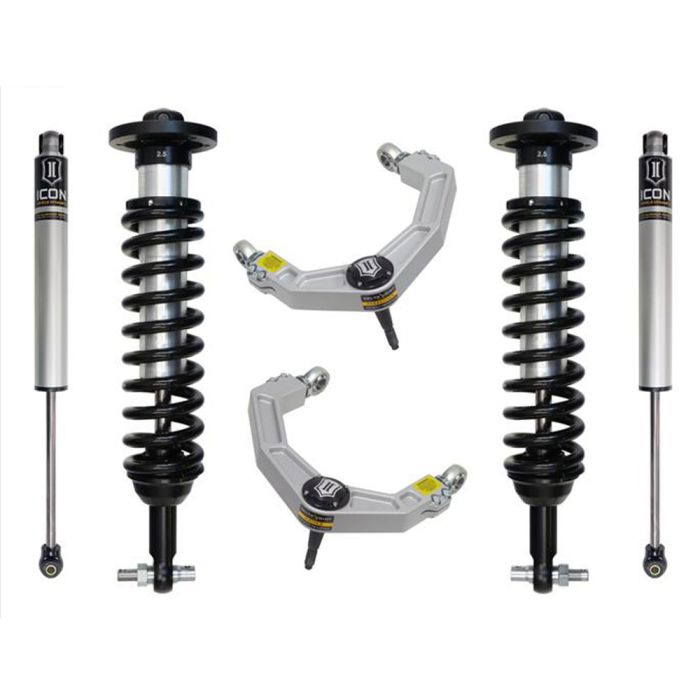

ICON Vehicle Dynamics Stage 2 Suspension System 0-3” Lift Billet 2WD F-150 2021-2023

For those seeking the ultimate upgrade in suspension performance for their 2021-2023 F-150s, the ICON Vehicle Dynamics Stage 2 Billet 0-3” Lift Suspension System (K93122) is the answer. This system offers increased wheel travel and ride quality over stock, all while retaining maximum towing capacity. With vehicle-specific tuned front and rear shocks providing superior damping, the adjustable coilovers allow for up to 3 inches over stock.

Features and Benefits:
- Increased wheel travel and ride quality over stock
- Retains maximum towing capacity
- Vehicle-specific tuned front and rear shocks
- Superior damping
- Billet aluminum UCAs for added strength, durability, and alignment geometry
- Adjustable coilovers provide 0-3” over stock
- 6061 aircraft-grade aluminum CNC machined components
- Corrosion and abrasion-resistant CAD-plated shock bodies
- High-strength alloy CNC machined lower bar pins
- ICON 2.0” Aluminum Series rear shocks with 5/8” induction hardened shafts
- FK rod end bearings for extended longevity and minimal deflection
- Hard anodized, impact-extruded aluminum cylinders
- Delta Joint combines uniball performance with ball joint durability
- Direct bolt-on installation with no cutting or welding required
- Made in the USA

Made with 6061 aircraft-grade aluminum CNC machined components, billet aluminum upper control arms, and high-strength alloy CNC machined lower bar pins, this suspension system is built for strength and durability. The corrosion and abrasion-resistant CAD-plated shock bodies complement the ICON 2.0” Aluminum Series rear shocks to provide unrivaled longevity and minimal deflection. Made in the USA and with a direct bolt-on installation with no cutting or welding required, this system is exactly what your F-150 needs to reach new suspension heights.

Vehicle Fitment:
- 2021-2023 F-150s
- Fits 2WD models
- Not compatible with models equipped with OnBoard Scales
- Not compatible with F-150s equipped with BlueCruise

Additional Notes:
- OEM wheels and tires fitment: not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace are recommended.
- Recommended aftermarket wheels: 17x8.5" w/ 5.00” backspace / 6mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.25" backspace / 6mm offset
- Recommended aftermarket wheels: 20x9" w/ 5.625" backspace / 16mm offset
- Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Will not work with factory-installed electronically controlled suspension.
- Equipped with dynamic bending headlamps purchase box P/N: 611071.
- Only compatible with rear-wheel drive (2WD/RWD) models.
- Only compatible with OE spindles. Do not install in combination with any aftermarket spindles.
- Models equipped with PowerBoost hybrid engines will have a lift height range of 0-2.75" over stock.
- Models equipped with Power-Stroke diesel engines will have a lift height range of 0-2.5" over stock.
- Included rear shocks are compatible with 0-1" of rear lift over stock on most models.
- Ships in multiple boxes.
