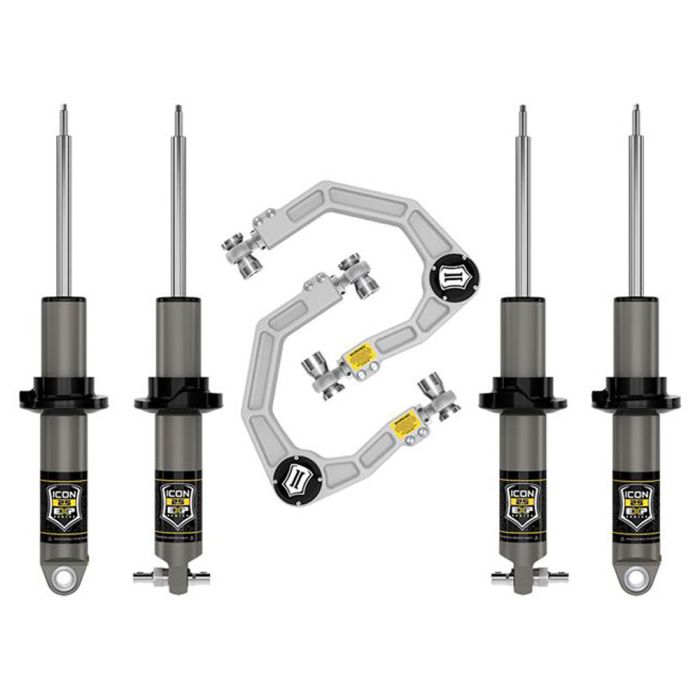

ICON Vehicle Dynamics Stage 2 Suspension System Billet for HOSS 1.0 Bronco 21-26

Your 2021-2026 Bronco’s HOSS 1.0 suspension package is a force to be reckoned with, so brandish the full power of its coils using ICON Vehicle Dynamics’ Stage 2 Billet Suspension System! To cultivate top-tier wheel travel in your ride, this system puts four 2.5 Aluminum series EXP shocks to use. Each is fitted with an internal reservoir and snap ring grooves which gives the freedom of height adjustability. Thanks to it, you get 1-3/8” to 3” worth of lifting in the front with 1-1/2” to 2-1/4” at the rear.

Features and Benefits:
- (4) 2.5 Aluminum series EXP shocks w/ internal reservoirs
- Adjustable height: 1-3/8” to 3” in front, 1-1/2” to 2-1/4” in rear
- Stellar damping & heat dissipation in one-piece, digressive piston
- Increased wheel travel & refined ride quality
- Chrome-plated, induction-hardened, 7/8” diameter, inverted shafts
- One-piece, impact-extruded, hard anodized cylinders
- Upper control arms built from billet aluminum
- On-vehicle caster/camber adjustment
- PTFE-lined spherical bearings minimize deflection
- Reuses factory coils & coil hardware
- 100% bolt-on installation w/o cutting/welding
- Fully rebuildable & re-tunable

The shocks feature a one-piece, digressive piston that excels at both damping performance and heat dissipation. When combined with your factory coils and hardware, it gives your Bronco the best in ride quality both on and off the road. Even on-vehicle caster and camber adjustment are easy because of the upper control arms, built from billet aluminum for weightless durability. Plus, the system has a 100% bolt-on installation to avoid permanent modifications, making it completely rebuildable and re-tunable!

Vehicle Fitment:
- 2021-2026 Ford Bronco
- For models with the factory HOSS 1.0 suspension package
- Fits base, Big Bend, Outer Banks, & Black Diamond trims
*Only fits trims without the Sasquatch package
*NOT compatible with Bronco Raptors

Additional Notes:
- OEM wheels & tires fitment: no
- Recommended aftermarket wheels: 17x8.5" w/ 4.75” backspace / 0mm offset
- Recommended aftermarket wheels: 18x9" with 5" backspace / 0mm offset
- Recommended aftermarket wheels: 20x9" with 5" backspace / 0mm offset
- Recommended aftermarket tires: 35" x 12.50"
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- When running 35” tires, it is recommended you use high-clearance crash bars (P/N: 42000), sold separately.
- 37” tires will require coilover bump stop spacers along with trimming and modifications. Removal of the crash bar may also be required but it is not recommended.
- When running 37” tires, ICON Vehicle Dynamics recommends using their bump stop spacer kit in the front (P/N: 611082), sold separately.
- 2-door models will sit taller than 4-door models.
