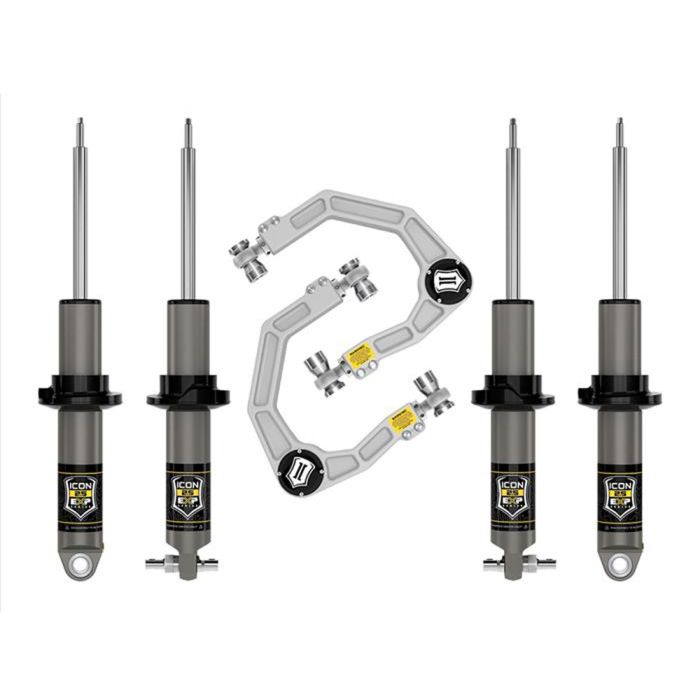

ICON Vehicle Dynamics Stage 2 Suspension System 0-2" Lift Billet Hoss 2.0 Bronco 21-26

If you're serious about getting the most out of your 2021-2026 Bronco with the Hoss 2.0 Suspension Package, the ICON Vehicle Dynamics Stage 2 Billet Lift Suspension System (K40012) is an essential upgrade. With an adjustable ride height of 0-2", this system utilizes factory coils and hardware while providing exceptional durability and performance. ICON's one-piece digression piston design and hard anodized aluminum cylinders are built to withstand the toughest conditions, ensuring your Bronco can handle any terrain with ease.

Features and Benefits:
- Includes set of (4) 2.5” aluminum series EXP shocks with internal reservoirs
- Adjustable front ride height of 0-2” lift with the use of snap rings
- Utilizes factory coils and hardware
- 7/8” inverted shaft-up and one-piece digression piston design
- Hard anodized aluminum cylinders
- Excellent corrosion and abrasion resistance
- Consistent finish
- Impact-extruded aluminum shock body
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE-lined spherical bearings
- Extended longevity and minimal deflection
- Maximizes damping and ride quality
- Vehicle-specific tuned shocks
- Billet aluminum UCAs for added strength and durability
- On-vehicle caster/camber adjustment for optimum drivability
- Delta Joint Pro provides 90-degrees of articulation
- Fully rebuildable and re-tunable
- Direct bolt-in installation
- Made in the USA

The PTFE-lined spherical bearings maximize longevity and minimize deflection while the vehicle-specific tuned shocks and billet aluminum UCAs provide added strength and durability for optimum drivability. This system is fully rebuildable and re-tunable, ensuring that you can enjoy its benefits for years to come. With its direct bolt-in design, you won't have to waste any time before hitting the trails.

Vehicle Fitment:
- 2021-2026 Broncos
- Fits Base, Big Bend, Outer Banks, and Black Diamond trim levels
- Only fits trims with Sasquatch package
- Only fits Broncos equipped with Hoss 2.0 Hoss Suspension Package
- Does not fit Bronco Raptor

Additional Notes:
- OEM wheels and tires fitment: no
- Recommended aftermarket wheels: 17x8.5" w/ 4.75” backspace / 0mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.00" backspace / 0mm offset
- Recommended aftermarket wheels: 20x9" w/ 5.00" backspace / 0mm offset
- Recommended aftermarket tires (with Sasquatch package): 35" x 12.50" (37" tires require coilover bump stop spacers along with trimming and modifications)
- Shocks are fully serviceable. lift heights indicated are for a stock-equipped vehicle.
- 2-door models will sit taller than 4-door models.
- Recommend high clearance crash bars part #42000 on non-Sasquatch equipped vehicles when running 35" tires.
- When running 37" tires use bump stop spacer kit part #611082 in the front.
- When running 37" tires crash bar removal may be required but is not recommended.
