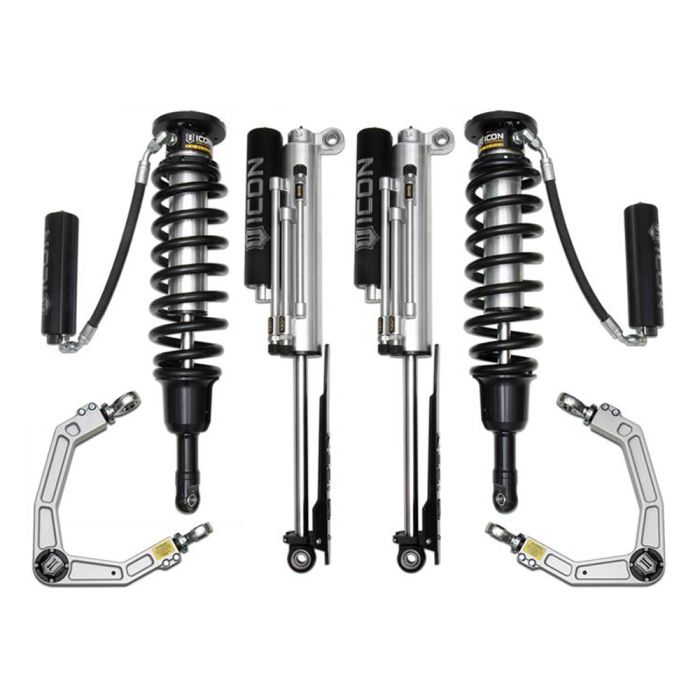

ICON Vehicle Dynamics Stage 2 Suspension System F-150 Raptor 2017-2020

With this ICON Vehicle Dynamics Stage 2 Suspension System, your 2017-2020 F-150 Raptor gets a state-of-the-art suspension upgrade that is thoughtfully put together entirely by one team to improve the quality and handling of your ride! Featuring adjustable coilovers with lift heights of 1 to 3 inches, this system (K93152) offers increased wheel travel and vehicle-specific valving for optimal control on and off the road.

3.0 Series Coilover Shock Kit Features and Benefits:
- Adjustable coilovers yield 1-3" of front lift height
- Increased wheel travel and vehicle-specific valving for on- and off-road use
- Superior low-speed control reduces body roll and increases on-road stability
- Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings
- Multi-stage hydraulic “Bump Zone” increases bottom-out resistance in last 40% of compression travel
- 10" finned aluminum reservoirs increase oil volume and surface area
- Enhanced cooling properties and consistent damping
- Barreled coil spring design maximizes travel
- ICON-engineered coil springs resist sagging or breakage
- Heavy duty CNC machined 1" shock shafts
- FK Rod End COM12 spherical bearings ensure maximum strength and durability
- CAD-plated shock body with hard anodized piston and top cap
- Fully serviceable design allows for re-valves and rebuilds
- Bolt-in design makes for an easy install into OEM shock location

The easy-to-adjust CDC valve of this system's 3.0 Series coilover shock kit provides 10 compression damping settings to suit all driving styles and terrains. The multi-stage hydraulic "Bump Zone" increases bottom-out resistance in the last 40% of compression travel, while the 10" finned aluminum reservoirs increase oil volume and surface area for enhanced cooling and consistent damping. With a fully serviceable design and a bolt-in installation, the ICON Vehicle Dynamics Stage 2 Suspension System provides superior low-speed control and increased on-road stability for Ford Raptor drivers.

3.0 Series 3-Tube Bypass Shock Kit Features and Benefits:
- 3-tube bypass design and "Bump Zone" technology
- Multiple unique zones of damping and rebound control
- 50% increase in damping ability over OE shocks
- Excellent performance in extreme off-road conditions
- 12" finned aluminum reservoirs increase oil volume and surface area
- Enhanced cooling properties and consistent damping
- Offset upper eyelet with patented ICON Anti-Wobble link
- Optimized shock mounting and packaging
- Easy-to-adjust detented knobs offer quick adjustability without tools
- Specially engineered damped valve stops for quiet and precise operation
- Eliminates loud “clicking” noise common with other brands
- Urethane shin guards help to protect the shock shaft & rod end from premature wear

The included 3.0 Series 3-tube bypass shock kit provides multiple unique zones of damping and rebound control for ultimate control over any terrain. A 50% increase in damping ability over OE shocks allows you to take on extreme off-road conditions. The 12" finned aluminum reservoirs increase oil volume and surface area for enhanced cooling properties, meaning your shocks will stay consistent even in the toughest conditions. The patented ICON Anti-Wobble link and offset upper eyelet ensure optimized shock mounting and packaging, and the easy-to-adjust detented knobs offer quick adjustability without the need for tools. With specially engineered damped valve stops, you can count on quiet and precise operation, without the loud “clicking” noise found with other brands. And, for added protection, the urethane shin guards help to protect the shock shaft and rod end from premature wear.

Additional Information:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Any 2019-2020 vehicles with factory live valve shocks will need an icon damper interface device (P/N: 95199) to allow the vehicle drive modes to operate correctly with the OE shocks removed.
- Ships in multiple boxes.
