ICON Vehicle Dynamics Stage 2 Suspension System Tubular 0-2.63” Lift 2WD F-150 2009-2013

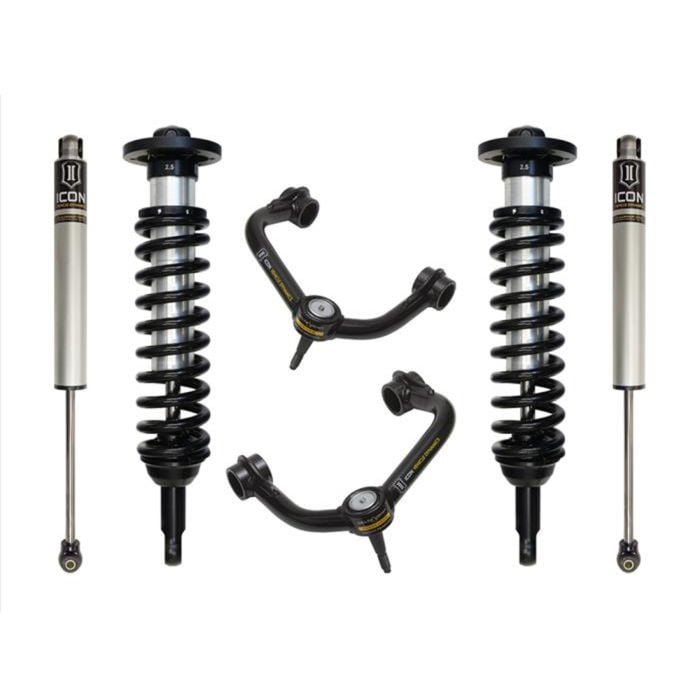

The Stage 2 Tubular Suspension System from ICON Vehicle Dynamics is designed to provide your F-150 with an increased ride height, allowing for additional wheel travel and larger, more aggressive wheel and tire combinations. With adjustable front and rear coilovers, this suspension system offers a lift height yield of 0-2.63” over stock. To provide additional strength, durability, and improved alignment geometry, this kit utilizes tubular upper control arms.

Features & Benefits:
- Heavy-Duty, High-Angle Delta Joint
- Increased Wheel Trave & Ride Quality Over Stock
- Improved Suspension Performance
- Retains Factory Towing Capacity
- Vehicle-Specific Tuned Front & Rear Shocks
- Superior Damping & Vehicle Control
- Adjustable Coilovers Yield 0-2.63” Lift Height
- ICON CDCV-Equipped Front & Rear Shocks
- Full Sock Compression Tunability
- Tubular Upper Control Arms
- Additional Strength, Durability, Adjustability, & Improved Alignment
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Body with 7/8” Shafts
- FK Rod End Bearings for Extended Longevity & Minimal Deflection
- 2.0 Aluminum Body IFP Rear Shock with 5/8” Polished Shaft
- Excellent Corrosion Resistance & Consistent Finish
- Bolt-On System, No Cutting or Welding Necessary

The included tubular upper control arms in the Stage 2 Suspension System feature ICON’s patented Delta Joint. Combining the durability of a ball joint with the performance characteristics of a traditional uniball, the Delta Joint is a heavy-duty high-angle ball joint featuring the best of both worlds. The Delta Joint features a zinc plated housing for corrosion resistance and a grease seal to keep out contaminants and to provide a noise-free operation.

Additional Information:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x18.5” with 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625” Backspace / 15mm Offset
- Recommended Aftermarket Tires: 33” x 11.50”
- Larger Tires May Fit with Fender Trimming & Modifications
- Shocks are Fully Serviceable
- Coilover Heights Indicated for Stock-Equipped F-150

Vehicle Fitment:
- 2009-2013 Ford F-150
- 2-Wheel Drive Models
