ICON Vehicle Dynamics Stage 2 Suspension System Tubular 2WD F-150 2014

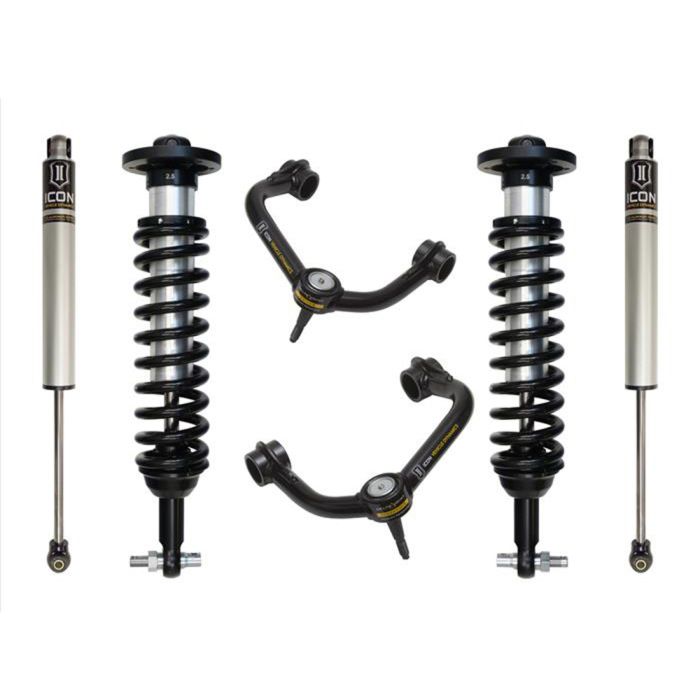

Designed for increased wheel travel and ride quality on 2WD 2014 Ford F-150s, this ICON Vehicle Dynamics Stage 2 Suspension System features 2-1/2 inch coilover shocks with expert tuning, 7/8-inch shafts, and CAD-plated bodies. It also offers a 100% bolt-on installation and will leave your truck's towing capacity unchanged as it precisely controls damping to match your needs!

Features and Benefits:
- Designed for 2WD models
- Increased wheel travel and ride quality over stock with no change in towing capacity
- 2-1/2" coilover shocks tuned specifically for your truck for damping and vehicle control
- Corrosion-resistant CAD plated coilover shock body with 7/8" shaft
- Shocks have internal reservoirs for enhanced cooling
- Adjustable coilovers provide 0" to 2.63" lift for use with larger wheels/tires
- Adjustable tubular upper control arms retain factory alignment
- CNC-machined 6061 aircraft-grade aluminum
- CNC-machined lower bar pin with exceptional strength
- FK Rod End bearings for extended longevity and minimal deflection
- 100% bolt-on installation with no drilling, cutting, or welding
- Made in the USA

The adjustable tubular upper control arms in this system are designed to retain factory alignment as your truck gets lifted by up to 2.63 inches. This allows for larger wheels and tires when off-roading, but is also legitimately usable on the street. Its FK rod end bearings minimize deflection while a CNC-machined 6061 aluminum lower bar pin maintains strength and longevity. Zero cutting, drilling, and welding are required to install this USA-made Stage 2 Suspension System (K93072T) thanks to a 100% bolt-on installation!

Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Ships in multiple boxes.
