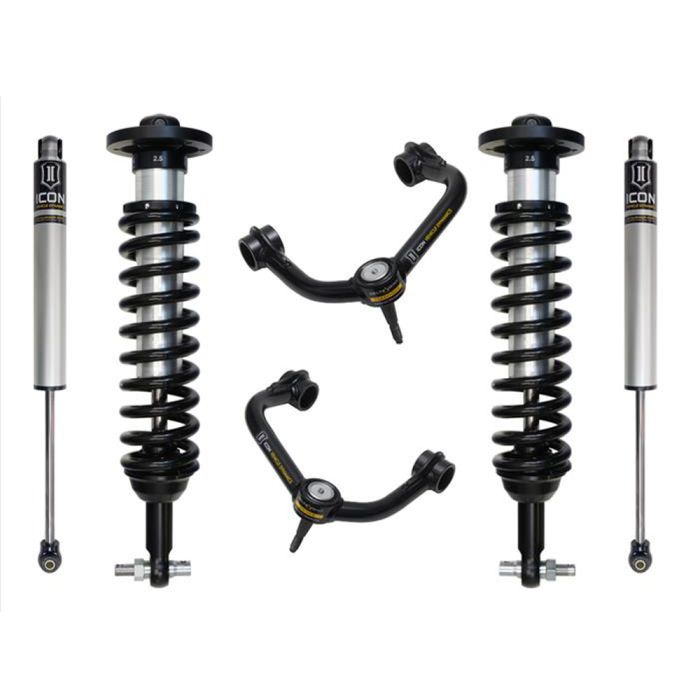

ICON Vehicle Dynamics Stage 2 Suspension System 0-3” Lift Tubular 2WD F-150 2021-2023

The ICON Vehicle Dynamics Stage 2 Tubular 0-3" Lift Suspension System (K93122T) for 2021-2023 F-150s with 2WD is the solution for serious truck enthusiasts. Featuring an array of advanced features, this suspension system offers improved ride quality and increased wheel travel over stock. The vehicle-specific tuned front and rear shocks provide superior damping for a smooth and controlled drive. Additionally, the adjustable coilovers allow for customization and provide up to 3 inches of lift over the stock setup.

Features and Benefits:
- Increased wheel travel and ride quality over stock
- Retains maximum towing capacity
- Vehicle-specific tuned front and rear shocks
- Superior damping
- Tubular UCAs for added strength, durability, and alignment geometry
- Adjustable coilovers provide 0-3” over stock
- 6061 aircraft-grade aluminum CNC machined components
- Corrosion and abrasion-resistant CAD-plated shock bodies
- High-strength alloy CNC machined lower bar pins
- ICON 2.0” Aluminum Series rear shocks with 5/8” induction hardened shafts
- FK rod end bearings for extended longevity and minimal deflection
- Hard anodized, impact-extruded aluminum cylinders
- Delta Joint combines uniball performance with ball joint durability
- Direct bolt-on installation with no cutting or welding required
- Made in the USA

This suspension system is engineered with 6061 aircraft-grade aluminum CNC machined components, ensuring exceptional strength and durability. The tubular UCAs add further strength and alignment geometry to the setup, while the hardened pins and hard-anodized, impact-extruded aluminum cylinders offer corrosion and abrasion resistance. The direct bolt-on design of the system requires no cutting or welding for installation and even retains maximum towing capacity.

Vehicle Fitment:
- 2021-2023 F-150s
- Fits 2WD models
- Not compatible with models equipped with OnBoard Scales
- Not compatible with F-150s equipped with BlueCruise

Additional Notes:
- OEM wheels and tires fitment: not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace are recommended.
- Recommended aftermarket wheels: 17x8.5" w/ 5.00” backspace / 6mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.25" backspace / 6mm offset
- Recommended aftermarket wheels: 20x9" w/ 5.625" backspace / 16mm offset
- Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Will not work with factory-installed electronically controlled suspension.
- Only compatible with rear-wheel drive (2WD/RWD) models.
- Only compatible with OE spindles. Do not install in combination with any aftermarket spindles.
- Models equipped with PowerBoost hybrid engines will have a lift height range of 0-2.75" over stock.
- Models equipped with Power-Stroke diesel engines will have a lift height range of 0-2.5" over stock.
- Included rear shocks are compatible with 0-1" of rear lift over stock on most models.
- Included tubular front upper control arms are optimized for front lift heights from 1.75-3" over stock.
- Ships in multiple boxes.
