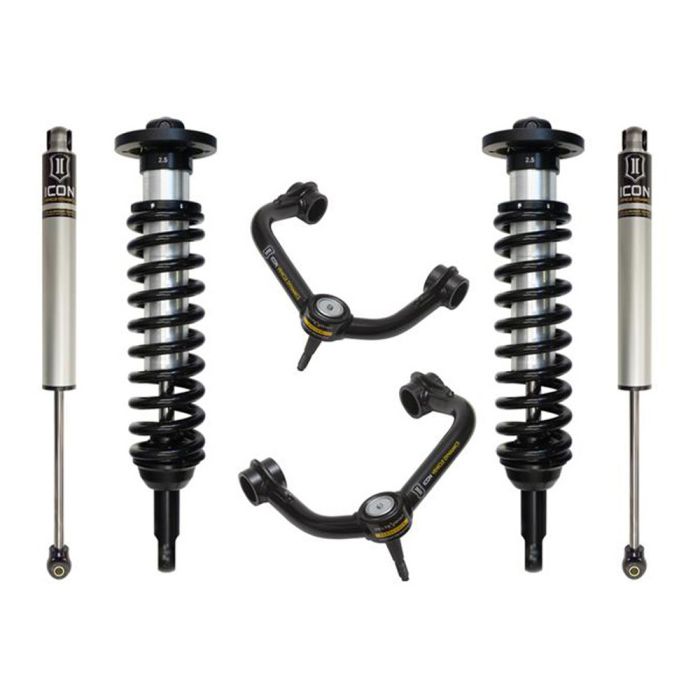

ICON Vehicle Dynamics Stage 2 Suspension System Tubular 4-Wheel Drive F-150 2009-2013

With the 0” to 2.63” of lift height this ICON Vehicle Dynamics Stage 2 Tubular Suspension System offers, 2009-2013 F-150s can enjoy aggressive wheel-to-tire combos and more! Specially tuned and valved to your 4-wheel drive, this system boasts 2.0 Aluminum series rear shocks. With internal reservoirs and 5/8" nitro steel shafts, they provide excellent cooling and durability to match the fluid drivability. Combined with the corrosion-resistant coilovers, they form excellent front-to-rear balance for top-notch damping performance.

Features and Benefits:
- 2.0 Aluminum series rear shocks w/ internal reservoirs
- Shock bodies have 5/8” polished, nitro steel shaft
- Vehicle-specific tuning & valving enhances front-to-rear balance
- Stellar damping & vehicle control on/off-road
- Boosts wheel travel, refines ride quality, & retains towing capacity
- Corrosion-resistant, CAD-plated, coilovers w/ 7/8” shaft
- Coilovers bear adjustable lift height of 0” to 2.63”
- Tubular UCAs boost strength & retain OEM alignment spec range
- UCAs feature heavy-duty, high-angle Delta Joint
- Delta Joint is zinc-plated & uses tough grease seal
- Components CNC-machined from 6061 aircraft-grade aluminum
- FK rod end bearings boost longevity & minimize deflection
- Bolt-on installation w/o cutting/welding

Tubular upper control arms help retain the factory alignment spec range, using increased caster over stock. A Delta Joint supplements them, using a high-angle to achieve articulation with minimal bind. The joint’s tough grease seal ensures lasting operation by locking out dirt while FK rod end bearings diminish deflection. It adds up to a system that creates exceptional handling and increased wheel travel without compromising towing capacity.

Vehicle Fitment:
- 2009-2013 Ford F-150
- For 4-wheel drive applications ONLY

Additional Notes:
- OEM wheels & tires fitment: yes
- Recommended aftermarket wheels: 17x8.5" w/ 5” backspace / 6mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.25" backspace / 6mm offset
- Recommended aftermarket wheels: 20x9" w/ 5.625" backspace / 16mm offset
- Recommended aftermarket tires: 33" x 11.50"
- Larger tires may fit but fender trimming and modifications will be required.
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
