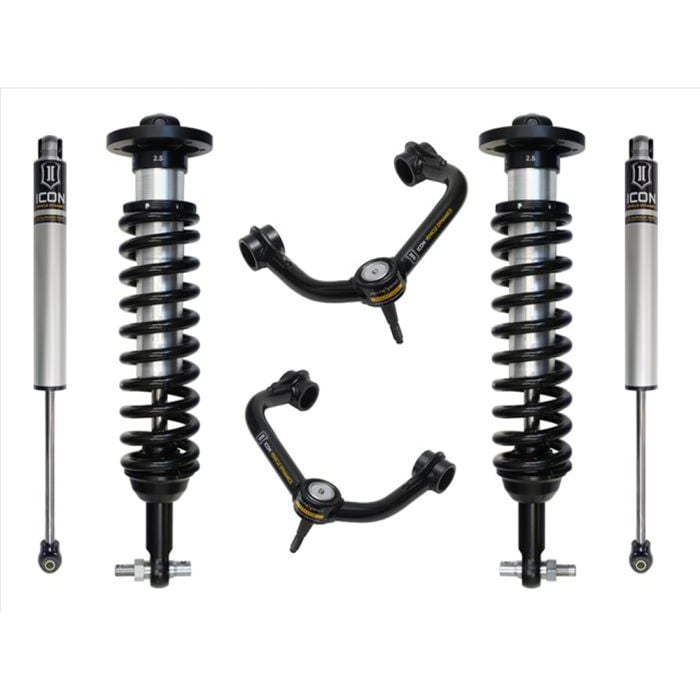

ICON Vehicle Dynamics Stage 2 Tubular Suspension System 4WD F-150 21-26

The Tubular Stage 2 Suspension System from ICON Vehicle Dynamics is an excellent upgrade to your 2021-2026 4WD F-150’s suspension. This new suspension system design increases wheel travel and improves the ride quality over the factory system. Each coilover spring is custom-tuned and features an adjustable design for different ride heights for better performance on trails. Height ranges from 0-2.75" of lift height, providing great options for your specific needs. Tubular upper control arms on the F-150 not only add strength and durability but help retain factory alignment spec range increasing caster over stock.

Features and Benefits:
- Increased wheel travel and ride quality over stock with no change in towing capacity
- High-strength alloy CNC machined lower bar pins
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 aluminum body rear IFP shocks with 5/8" polished chrome steel shafts
- 100% Bolt-on system - no drilling, cutting or welding necessary for install
- Vehicle-specific tuned front and rear shocks for superior damping and vehicle control
- Adjustable coilovers from 0-2.75" of lift height
- Tubular Upper Control Arms for added strength, durability, and alignment spec range
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts

Vehicle Fitment:
- 2021-2026 F-150
- 4WD models
*NOT compatible with F-150 Tremor or F-150 Raptor.

Technical Information:
- Shocks Are Fully Serviceable. Coilover Heights Indicated Are for A Stock Equipped Vehicle
- Will Not Work With Factory Installed Electronically Controlled Suspension
- Only compatible with 4-wheel drive (4WD) models
- Only compatible with OE spindles. DO NOT install in combination with ANY aftermarket spindles.
- Models equipped with PowerBoost hybrid engines will have a lift height range of 0-2.5" over stock
Models equipped with Power-Stroke diesel engines will have a lift height range of 0-2.25" over stock
- Not compatible with models equipped with OnBoard Scales or BlueCruise
- Included rear shocks are compatible with 0-1" of rear lift over stock on most models
- Included tubular front upper control arms are optimized for front lift heights from 1.75-3" over stock

OEM Wheels & Tires Fitment:
*Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace are recommended.
- Recommended Aftermarket Wheels: 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
