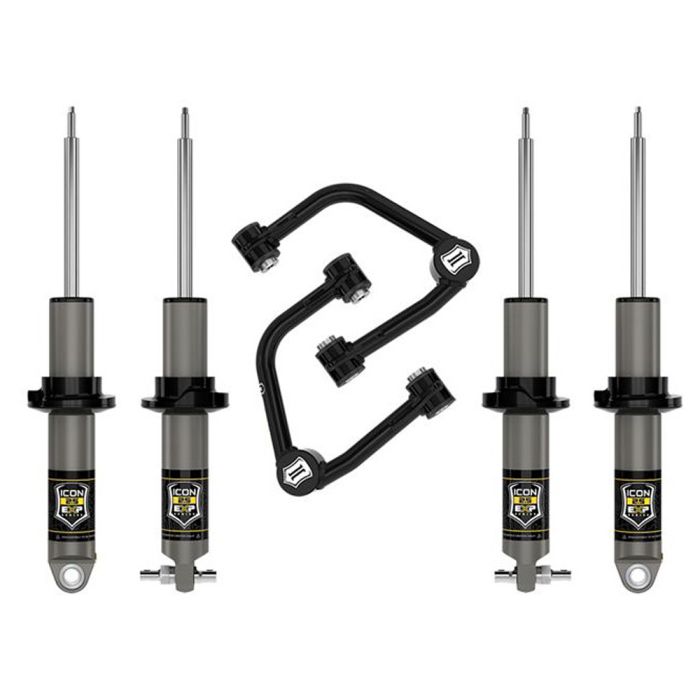

ICON Vehicle Dynamics Stage 2 Suspension System 0-2" Lift Tubular Hoss 2.0 Bronco 21-26

For owners of 2021-2026 Broncos with Hoss 2.0 Suspension Package, the ICON Vehicle Dynamics Stage 2 Tubular Lift Suspension System (K40012T) is a perfect upgrade. Featuring aluminum series EXP shocks with internal reservoirs, this suspension system has been designed to provide consistent off-road performance, no matter the conditions. With an adjustable front ride height of 0-2” lift, the system gives your ride a competitive edge while utilizing factory coils and hardware for a simpler installation. The 7/8” inverted shaft-up and one-piece digression piston design, along with hard anodized aluminum cylinders, make for excellent corrosion and abrasion resistance.

Features and Benefits:
- Includes set of (4) 2.5” aluminum series EXP shocks with internal reservoirs
- Adjustable front ride height of 0-2” lift with the use of snap rings
- Utilizes factory coils and hardware
- 7/8” inverted shaft-up and one-piece digression piston design
- Hard anodized aluminum cylinders
- Excellent corrosion and abrasion resistance
- Consistent finish
- Impact-extruded aluminum shock body
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE-lined spherical bearings
- Extended longevity and minimal deflection
- Maximizes damping and ride quality
- Vehicle-specific tuned shocks
- Tubular UCAs for added strength and durability
- On-vehicle caster/camber adjustment for optimum drivability
- Delta Joint Pro provides 90-degrees of articulation
- Fully rebuildable and re-tunable
- Direct bolt-in installation
- Made in the USA

CNC-machined 6061 aluminum components with a black anodized finish and PTFE-lined spherical bearings provide extended longevity and minimal deflection while maximizing damping and ride quality. The tubular UCAs offer added strength and durability, while on-vehicle caster/camber adjustment ensures optimum drivability. With the Delta Joint Pro providing 90 degrees of articulation, this suspension system is both fully rebuildable and re-tunable.

Vehicle Fitment:
- 2021-2026 Broncos
- Fits Base, Big Bend, Outer Banks, and Black Diamond trim levels
- Only fits trims with Sasquatch package
- Only fits Broncos equipped with Hoss 2.0 Hoss Suspension Package
- Does not fit Bronco Raptor

Additional Notes:
- OEM wheels and tires fitment: yes
- Recommended aftermarket wheels: 17x8.5" w/ 4.75” backspace / 0mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.00" backspace / 0mm offset
- Recommended aftermarket wheels: 20x9" w/ 5.00" backspace / 0mm offset
- Recommended aftermarket tires (with Sasquatch package): 35" x 12.50" (37" tires require coilover bump stop spacers along with trimming and modifications)
- Shocks are fully serviceable. lift heights indicated are for a stock-equipped vehicle.
- 2-door models will sit taller than 4-door models.
- Recommend high clearance crash bars part #42000 on non-Sasquatch equipped vehicles when running 35" tires.
- When running 37" tires use bump stop spacer kit part #611082 in the front.
- When running 37" tires crash bar removal may be required but is not recommended.
