ICON Vehicle Dynamics Stage 3 Suspension System Billet 0-2.63” Lift 2WD F-150 2014

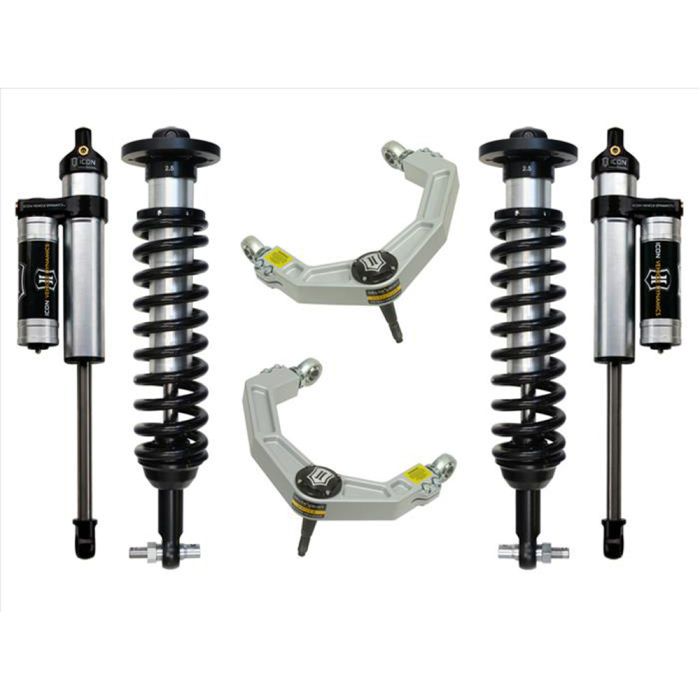

rThe Stage 3 Suspension System from ICON Vehicle Dynamics is designed to provide your 2014 2-wheel drive F-150 with improved suspension performance and ride quality, both on- and off-road. This suspension system features adjustable 2.5” coilovers with vehicle-specific valve tuning and internal reservoirs. To top it off, the 2.5 Series Coilovers offer a lift yield of 0-2.63” of lift over stock, allowing for larger and more aggressive wheel and tire combinations to tackle any terrain you encounter.

Features & Benefits:
- Improved Suspension Performance & Ride Quality
- Retains Factory Towing Capacity
- Vehicle-Specific Front & Rear Shock Valve Tuning
- Superior Damping & Vehicle Control
- Adjustable Ride Height Yield of 0-2.63”
- Billet Aluminum Upper Control Arms
- Added Strength, Durability, Adjustability & Alignment Geometry
- ICON’s Patented High-Angle Delta Joint
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Body with 7/8” Shaft
- 2.5 Series Aluminum Rear Shocks
- One-Piece Impact Extruded Aluminum Cylinders
- Excellent Corrosion Resistance & Consistent Finish
- High-Strength Allow CNC-Machined Lower Bar Pin
- FK Rod End Bearings for Extended Longevity & Minimal Deflection
- 100% Bolt-On System, No Cutting or Welding Necessary

This kit features billet aluminum upper control arms to provide your F-150 with additional strength and durability while retaining your factory alignment spec range. Each upper control arm features ICON’s patented Delta Joint—a heavy duty high-angle ball joint that mixes the best of ball joints and traditional uniball designs. The result is a highly durable ball joint that offers improved durability. Each Delta Joint has a zinc-plated housing for corrosion resistance, made even better with a greaseable design that extends longevity and provides noise-free operation.

Additional Information:
- OEM Wheels & Tires Fitment: Not Compatible with All Available OE Wheel/Tire Combinations
- Aftermarket Wheels with Lower Offset/Less Backspace Recommended
- Recommended Aftermarket Wheels: 17x8.5” with 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625” Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33” x 11.50” (Larger Tires May Fit with Fender Trimming/Modifications)
- Shocks Are Fully Serviceable
- Coilover Heights indicated Are for Stock-Equipped Vehicle

Vehicle Fitment:
- 2014 Ford F-150s
- 2-Wheel Drive Models
