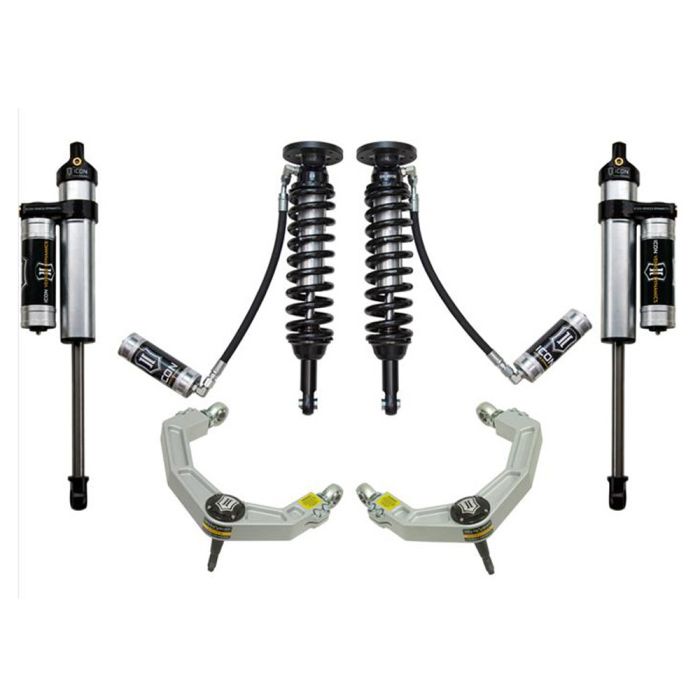

ICON Vehicle Dynamics Stage 3 Suspension System Billet 1.75-2.63” Lift 2WD F-150 2009-2013

For anyone looking to get maximum suspension performance out of their 2009-2013 2WD F-150, look no further than the Stage 3 Suspension System from ICON Vehicle Dynamics. With a primary focus of providing increased wheel travel, the Stage 3 System starts with adjustable coilovers that offer 1.75-2.63” of ride heigh lift over stock. Additional wheel travel allows for larger and more aggressive wheel and tire combinations for improved off-road handling. Each shock in the Stage 3 Suspension System features vehicle-specific valve tuning for exceptional damping ability under heavy usage.

Features & Benefits:
- Increased Wheel Travel & Ride Quality
- Retains Original Towing Capacity
- Vehicle-Specific Front & Rear Valve Tuning
- Remote Shock Oil Reservoirs
- Superior Damping & Vehicle Control
- Adjustable Coilovers Yield 1.75-2.63” Lift Height
- ICON-Engineered Eibach Coil Springs
- Billet Aluminum Upper Control Arms
- Additional Strength, Durability, Adjustability, & Alignment Geometry
- ICON’s Patented High-Angle Delta Joint
- Aircraft-Grade 6061 Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Bodies with 7/8” Shafts
- 2.5 Series Rear Shocks with One-Piece, Impact Extruded Cylinders
- Excellent Corrosion-Resistance & Consistent Finish on Shocks
- FK Rod End Bearings for Extended Longevity & Minimal Deflection
- 100% Bolt-On System; No Cutting, Drilling, or Welding
- Made in the USA

To round out the Stage 3 Suspension System, ICON Vehicle Dynamics utilizes billet upper control arms, adding strength, durability, adjustability, and improved alignment geometry. What sets these control arms apart is ICON’s patented Delta Joint, a heavy-duty high-angle ball joint that combines the performance characteristics of a uniball with the durability of a ball joint. The Delta Joint serves to provide articulation as well as protection from the elements thanks to its zinc-plated housing and greaseable design. Not only does the grease keep out harmful debris, but it doubles to provide noise-free operation!

Additional Information:
- OEM Wheels & Tires Fitment: Not Compatible with All Available OE Wheel/Tire Combinations
- Aftermarket Wheels with Lower Offset/Less Backspace Recommended
- Recommended Aftermarket Wheels: 17x8.5” with 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625” Backspace / 15mm Offset
- Recommended Aftermarket Tires: 33” x 11.50”
- Larger Tires Mat Fit with Fender Trimming & Modifications
- Shocks Are Fully Serviceable. Coilover Heights Indicated for Stock-Equipped Vehicle

Vehicle Fitment:
- 2009-2013 Ford F-150s
- 2-Wheel Drive Models
