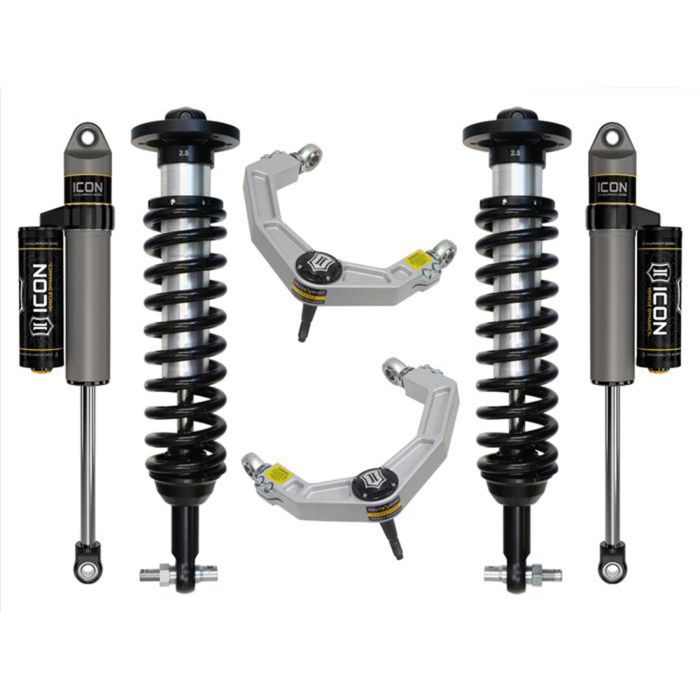

ICON Vehicle Dynamics Stage 3 Suspension System 0-3” Lift Billet 2WD F-150 2021-2023

The ICON Vehicle Dynamics Stage 3 Billet Suspension System (K93123) is a serious upgrade for 2021-2023 F-150s with 2WD. This suspension system offers increased wheel travel and superior ride quality over stock models without sacrificing towing capacity. With FK rod end bearings for extended longevity and minimal deflection, this system is built to last and features vehicle-specific tuned front and rear shocks. Adjustable coilovers provide up to 3 inches of lift over stock, making this system perfect for serious off-road enthusiasts.

Features and Benefits:
- Increased wheel travel and ride quality over stock
- Retains maximum towing capacity
- FK rod end bearings for extended longevity and minimal deflection
- Vehicle-specific tuned front and rear shocks
- Superior damping
- Billet UCAs for added strength, durability, and alignment geometry
- Adjustable coilovers provide 0-3” over stock
- 6061 aircraft-grade aluminum CNC machined components
- Corrosion and abrasion-resistant CAD-plated shock bodies
- High-strength alloy CNC machined lower bar pins
- 7/8” inverted shaft-up
- ICON 2.5” Aluminum Series Piggyback rear shocks
- Hard anodized, impact-extruded aluminum cylinders
- Delta Joint combines uniball performance with ball joint durability
- Direct bolt-on installation with no cutting or welding required
- Made in the USA

The billet upper control arms provide added strength, durability, and alignment geometry, while the high-strength alloy CNC machined lower bar pins ensure that these components can withstand even the roughest terrain. The 6061 aircraft-grade aluminum CNC machined components and CAD-plated shock bodies boast ultimate corrosion and abrasion resistance. With a direct bolt-on installation that requires no cutting or welding, the ICON Vehicle Dynamics Stage 3 Billet Lift Suspension System is the obvious choice for anyone looking to improve their F-150's performance.

Vehicle Fitment:
- 2021-2023 F-150s
- Fits 2WD models
- Not compatible with models equipped with OnBoard Scales
- Not compatible with F-150s equipped with BlueCruise

Additional Notes:
- OEM wheels and tires fitment: not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace are recommended.
- Recommended aftermarket wheels: 17x8.5" w/ 5.00” backspace / 6mm offset.
- Recommended aftermarket wheels: 18x9" w/ 5.25" backspace / 6mm offset.
- Recommended aftermarket wheels: 20x9" w/ 5.625" backspace / 16mm offset.
- Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required).
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Will not work with factory-installed electronically controlled suspension.
- Equipped with dynamic bending headlamps (purchase box 611071).
- Only compatible with rear-wheel drive (2WD/RWD) models.
- Only compatible with OE spindles. Do not install in combination with any aftermarket spindles.
- Models equipped with PowerBoost hybrid engines will have a lift height range of 0-2.75" over stock.
- Models equipped with Power-Stroke diesel engines will have a lift height range of 0-2.5" over stock.
- Included rear shocks are compatible with 0-1" of rear lift over stock on most models.
- Ships in multiple boxes.
