ICON Vehicle Dynamics Stage 3 Suspension System Tubular 0-2.63” Lift 2WD F-150 2024

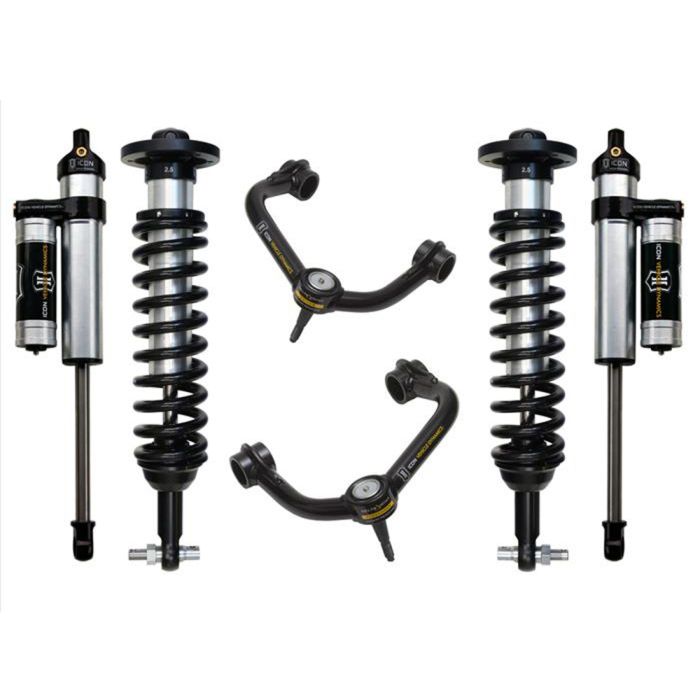

The Stage 3 Suspension System from ICON Vehicle Dynamics has been crafted specifically for 2014 2WD F-150s. ICON designed this system with the purpose of increasing wheel travel and damping ability, which serves to provide outstanding vehicle control both on- and off-road. The Stage 3 System includes 2.5” coilover shocks with internal reservoirs for outstanding cooling properties, ensuring maximum performance during hard use. Each shock offers vehicle-specific valving, designed specifically for 2014 2WD F-150s. Each adjustable coilover provides a lift height of 0-2.63” over stock, allowing for larger, more aggressive wheel and tire combinations.

Features & Benefits:
- Increased Wheel Travel & Ride Quality
- Improved Suspension Performance
- Retains Factory Towing Capacity
- Vehicle-Specific Tuned Front & Rear Shock Valving
- Superior Damping & Vehicle Control
- Adjustable Ride Height Yield of 0-2.63”
- Tubular Steel Upper Control Arms
- Added Strength, Durability, Adjustability & Alignment Geometry
- ICON’s Patented Heavy Duty, High-Angle Delta Joint
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Body with 7/8” Shaft
- 2.5 Series Aluminum Rear Shocks
- One-Piece Impact Extruded Aluminum Cylinders
- Excellent Corrosion Resistance & Consistent Finish
- High-Strength Allow CNC-Machined Lower Bar Pin
- FK Rod End Bearings for Extended Longevity & Minimal Deflection
- 100% Bolt-On System, No Cutting or Welding Necessary

The Stage 3 Lift Suspension System from ICON utilizes tubular steel upper control arms with ICON’s patented Delta Joint. Not only do the tubular UCAs offer additional strength and durability, but also retain your factory alignment spec range, increasing caster over stock. ICON’s Delta Joint is a heavy-duty high-angle ball joint that mixes the durability of a ball joint with the performance quality of a traditional uniball design for the best of both worlds. Each Delta Joint has a zinc-plated housing to ensure corrosion and rust resistance, made all the better with a greaseable design which doubles for noise-free operation.

Additional Information:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5” with 5.00 Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625” Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33” x 11.50” (Larger Tires May Fit with Fender Trimming/Modifications)
- Shocks Are Fully Serviceable
- Coilover Heights Indicated Are for Stock-Equipped Vehicle

Vehicle Fitment:
- 2014 Ford F-150s
- 2-Wheel Drive Models
