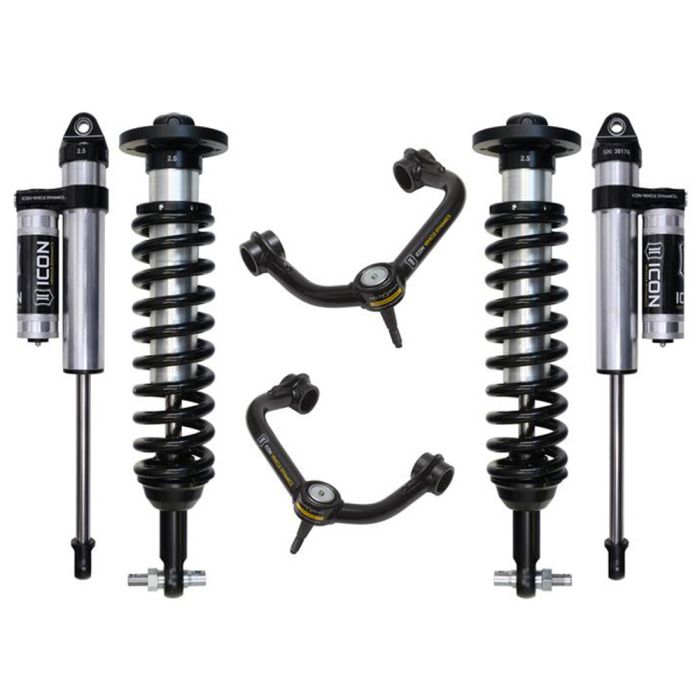

ICON Vehicle Dynamics Stage 3 Suspension System Tubular 2-Wheel Drive F-150 2015-2020

Your 2015-2020 F-150 needs suspension that’s tailored to its lighter weight, so ICON Vehicle Dynamics engineered their Stage 3 Tubular Suspension System as the solution! This system uses 2.5 Aluminum series rear shocks uniquely tuned and valved to your 2-wheel drive. Each is fitted with an internal reservoir that provides consistent, fresh cooling whether you’re on the street or trail. CAD-plated and corrosion-resistant coilovers complement them, granting drivers 0” to 3” of lift adjustability. Added together, they let you run wilder wheel and tire combos with the enhanced damping performance to support it.

Features and Benefits:
- 2.5 Aluminum series rear shocks w/ internal reservoirs
- Shocks specially tuned & valved to 2015-2020 F-150
- One-piece, impact-extruded, hard anodized, aluminum cylinders
- Stellar damping & vehicle control on/off-road
- Boosts wheel travel, refines ride quality, & retains towing capacity
- Corrosion-resistant, CAD-plated, coilovers w/ 7/8” shaft
- Coilovers bear adjustable lift height of 0” to 3”
- Tubular UCAs boost strength & retain OEM alignment spec range
- UCAs feature heavy-duty, high-angle Delta Joint
- Delta Joint is zinc-plated & uses tough grease seal
- Components CNC-machined from 6061 aircraft-grade aluminum
- Lower bar pin built from high-strength, CNC-machined alloy
- Bolt-on installation w/o cutting/welding

Excellent for vehicle control, the system is made better by tubular upper control arms. By increasing their caster over stock, they give your F-150 the same alignment spec range as the OEM iteration. A high-angle Delta Joint helps them articulate with minimal bind, using zinc plating and a tough grease seal for lasting operation. With the aircraft-grade aluminum construction of the components, the system becomes a lasting ride quality improvement that preserves towing capacity. Plus, it bolts on without any welding or cutting!

Vehicle Fitment:
- 2015-2020 Ford F-150
- For 2-wheel drive applications ONLY
- ONLY compatible with factory spindles

Additional Notes:
- OEM wheels & tires fitment: yes
- Recommended aftermarket wheels: 17x8.5" w/ 5” backspace / 6mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.25" backspace / 6mm offset
- Recommended aftermarket wheels: 20x9" w/ 5.625" backspace / 16mm offset
- Recommended aftermarket tires: 33" x 11.50"
- Larger tires may fit but fender trimming and modifications will be required.
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- For models with a Power-Stroke diesel engine, the lift height range will be 0” to 2-1/2” over stock.
- Included rear shocks are compatible with 0” to 1" of rear lift over stock on most models.
- Included tubular front upper control arms are optimized for front lift heights from 1-3/4” to 3” over stock.
