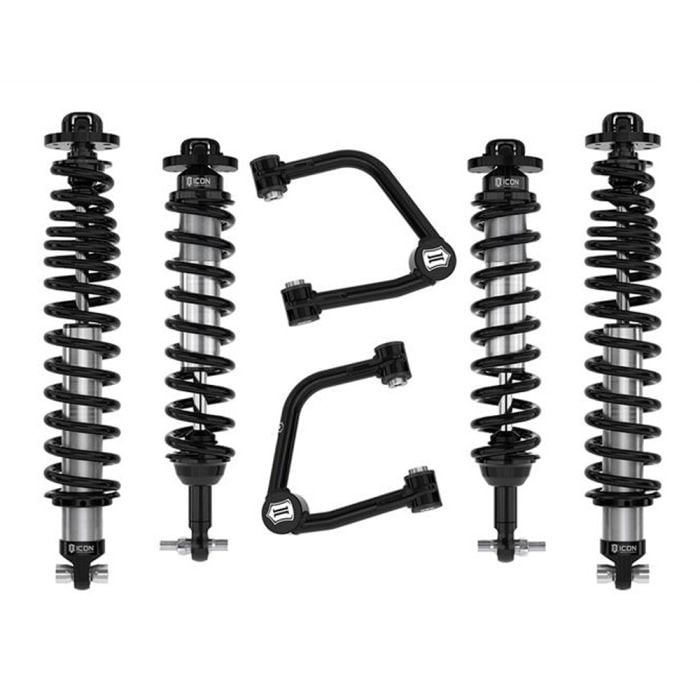

ICON Vehicle Dynamics Stage 3 Suspension System Tubular 3-4" Lift Bronco HOSS 1.0 Package 21-26

The ICON Vehicle Dynamics Lift Stage 3 Suspension System is a remarkable system that offers your 2021-2026 Bronco unparalleled ride quality on and off-road. The kit's adjustable coilovers boast a range of 3-4" of front lift and 2-3" of rear lift, while the precision-manufactured, vehicle-specific tuned internal reservoirs provide super damping for maximum control. To further optimize the system's potential, the Stage 3 Kit includes tubular upper control arms that provide caster correction, featuring the patented Delta Joint PRO with up to 90-degrees of freedom of movement. And let's not forget about the triple-rate coil springs that provide maximum rear suspension travel, delivering the ultimate ride quality imaginable. All in all, the ICON Vehicle Dynamics Lift Stage 3 Suspension System is a game-changer.

Features & Benefits:
- Improved Suspension Performance & Ride Quality
- Up to 11.5” Front & 14” Rear Wheel Travel with 35” Tires
- Vehicle-Specific Tuned Internal Reservoir Front & Rear Coilovers
- Superior Damping and Vehicle Control
- Adjustable Coilovers Yield 3-4” Front & 2-3” Rear Lift
- PTFE-Lined Spherical Bearings & Application Specific Hardware
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Bodies
- ICON-Engineered Coil Springs with Triple-Rate Rear Coil Design
- High-Strength Alloy CNC-Machined Lower Bar Pins
- Tubular Upper Control Arms Provide Caster Correction
- 100% Bolt-On Design, No Drilling, Cutting, or Welding
- Made in the USA

Additional Information:
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: 17x8.5” with 5.75” Backspace/25mm Offset
- Recommended Aftermarket Wheels: 18x9” with 6.00” Backspace/25mm Offset
- Recommended Aftermarket Tires: 35” x 12.50”
- 37” Tires Require Coilover Bump Stop Spacers & Minor Trimming
- Shocks are Fully Serviceable. Light Heights Indicated for Stock-Equipped Vehicles
- 2-Door Models will Sit Taller than 4-Door Models
- When Running 37” Tires, Use Up Travel Limiters P/N: 611075 in Front
- When Running 37” Tires, Use Up Travel Limiters P/N: 611074 in Rear
- Lift Heights & App Notes Based on Non-Sasquatch Equipped Vehicles
- Tripe-Rate Rear Coils Optimized for Improved Suspension Performance & Ride Quality for Near-Stock Weight Bronco. Their Softer Initial Spring Rates Will Net Lower than Advertised Ride Heights as Weight is Added to Rear of Vehicle. For Heavier Equipped Broncos, Consider P/N: K40003X
- Bronco Everglades Will Have Front Lift Height Range of 1.5-2.5” Over Stock.

Vehicle Fitment:
- 2021-2026 Broncos with HOSS1.0 Suspension Package
- Base, Big Bend, Outer Banks, & Black Diamond Trim Levels
* Will NOT Fit Models with Sasquatch Suspension
* Will NOT Fit Bronco Raptor
