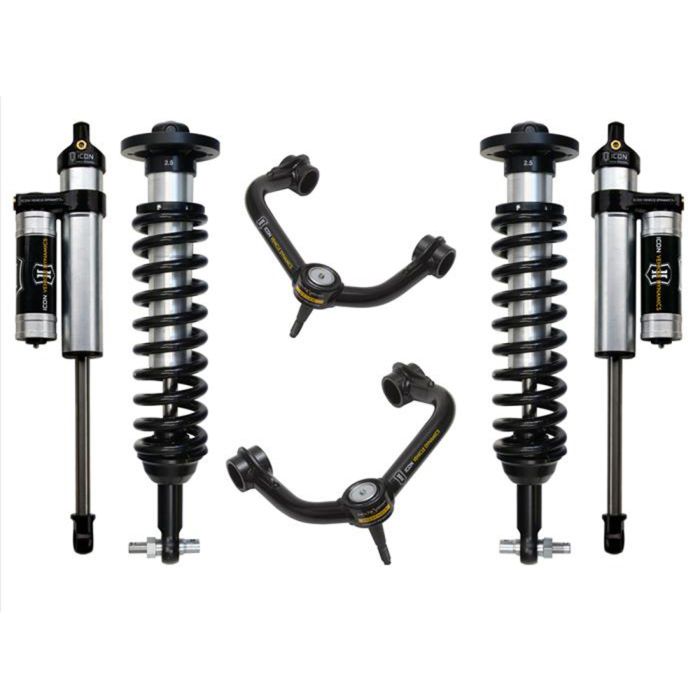

ICON Vehicle Dynamics Stage 3 Suspension System Lift Tubular 4WD F-150 2014

For 2014 F-150s with 4WD, serious off-road enthusiasts need not look any further than the ICON Vehicle Dynamics Stage 3 Tubular Lift Suspension System (K93063T). This system boasts features like increased wheel travel and ride quality over stock, as well as superior damping and control. Retaining maximum towing capacity, the tubular upper control arms provide added strength, durability, and alignment geometry.

Features and Benefits:
- Increased wheel travel and ride quality over stock
- Retains maximum towing capacity
- FK rod end bearings for extended longevity and minimal deflection
- Vehicle-specific tuned front and rear shocks
- Superior damping and control
- Tubuluar UCAs for added strength, durability, and alignment geometry
- Adjustable coilovers provide 0-2.63” lift height
- 6061 aircraft-grade aluminum CNC machined components
- Corrosion-resistant CAD-plated shock bodies with 7/8” shaft
- High-strength alloy CNC machined lower bar pins
- ICON 2.5” Aluminum Series rear shocks
- Hard anodized, impact-extruded aluminum cylinders
- Delta Joint combines uniball performance with ball joint durability
- Direct bolt-on installation with no cutting or welding required
- Made in the USA

Adjustable coilovers provide a 0-2.63" lift height and are crafted from 6061 aircraft-grade aluminum CNC machined components. The corrosion-resistant CAD-plated shock bodies with 7/8" shaft and high-strength alloy CNC machined lower bar pins ensure longevity. Even more, the hard anodized, impact-extruded aluminum cylinders and Delta Joint pair together to provide maximum performance and durability.

Vehicle Fitment:
- 2014 F-150s
- Fits 4WD models

Additional Notes:
- OEM wheels and tire fitment: yes
- Recommended aftermarket wheels: 17x8.5" w/ 5.00” backspace / 6mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.25" backspace / 6mm offset
- Recommended aftermarket wheels: 20x9" w/ 5.625" backspace / 16mm offset
- Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Only compatible with OE spindles. Do not install in combination with any aftermarket spindles.
- Only compatible with 4-wheel drive (4WD) models.
- Included tubular front upper control arms are optimized for front lift heights from 1.75-3" over stock.
- Included rear shocks are compatible with 0-1" of rear lift over stock on most models.
- Not compatible with models equipped with CNG or LPG-fueled engines
- Ships in multiple boxes.
