ICON Vehicle Dynamics Stage 3 Suspension System Tubular Sasquatch Bronco 21-26

The ICON Vehicle Dynamics Tubular Stage 3 Suspension System is the answer to improving the ride quality and performance of your 2021-2026 Sasquatch Ford Bronco. Equipped with tuned remote reservoir front and rear coilover shocks, this USA-made system boasts increased wheel travel of up to 11-1/2" front and 14" rear when using 35" tire fitment.

Features and Benefits:
- Stage 3 Suspension System for Sasquatch Broncos
- Tuned remote reservoir front & rear coilover shocks
- Corrosion-resistant CAD-plated coilover shock bodies with 7/8" diameter shafts
- Improves ride quality and performance with enhanced vehicle control and damping
- Provides 2-3" front lift & 1-1/4" to 2-1/4" rear lift over stock
- Up to 11-1/2" front / 14" rear wheel travel with 35" tire fitment
- Remote reservoirs increase heat dissipation & resist overheating/cavitation
- Tubular Upper Control Arms offer strength, alignment correction, & caster/camber adjustment
- Delta Joint Pro offers 90° of articulation
- Alloy CNC-machined lower bar pins
- 100% bolt-on installation with no drilling, cutting, or welding
- Includes PTFE-lined spherical bearings and mounting hardware
- Made in the USA!

This system's corrosion-resistant CAD-plated coilover shock bodies combined with its billet aluminum upper control arms and Alloy CNC-machined lower bar pins create enhanced vehicle control and damping. You'll also get 2" to 3" front lift and 1-1/4" to 2-1/4" rear lift over stock. The built-in Delta Joint Pro offers 90 degrees of articulation, while caster and camber adjustment is made possible with the PTFE-lined spherical bearings. With no drilling, cutting, or welding required, the Stage 3 Suspension System (K40013T) can be bolted on, giving you the vehicle lift and on-vehicle adjustability you've been after.

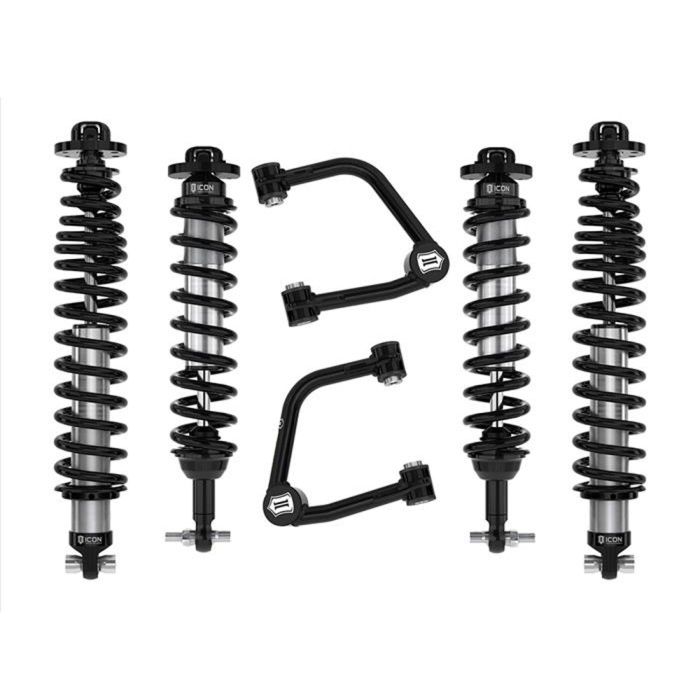

System Includes:
- Front Coilover Kit
- Rear Coilover Kit
- Billet Aluminum Upper Control Arm Kit with Delta Joint Pro

Tech Info:
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: 18x9" with 5" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: 20x9" with 5" Backspace / 0mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
- Shocks are fully serviceable. Lift heights indicated are for a stock-equipped vehicle.
- 2-door models will sit taller than 4-door models.
- When Running 37" Tires Use Up Travel Limiters Part #611075 in the Front
- When Running 37" Tires Use Up Travel Limiters Part #611074 for the Rear
- Lift Heights & App Notes Based Non-Sasquatch Equipped Vehicles
- Fitment testing done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
- Triple rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier equipped Broncos, consider part number K40013TX.
- Bronco Everglades will have front lift height range of 1-1/2" to 2-1/2" over stock.

Vehicle Fitment:
- 2021-2026 Ford Bronco

*Fits Base, Big Bend, Outer Banks, and Black Diamond trim levels.
*Fits trim levels with Sasquatch package.
*NOT compatible with Bronco Raptor models.
