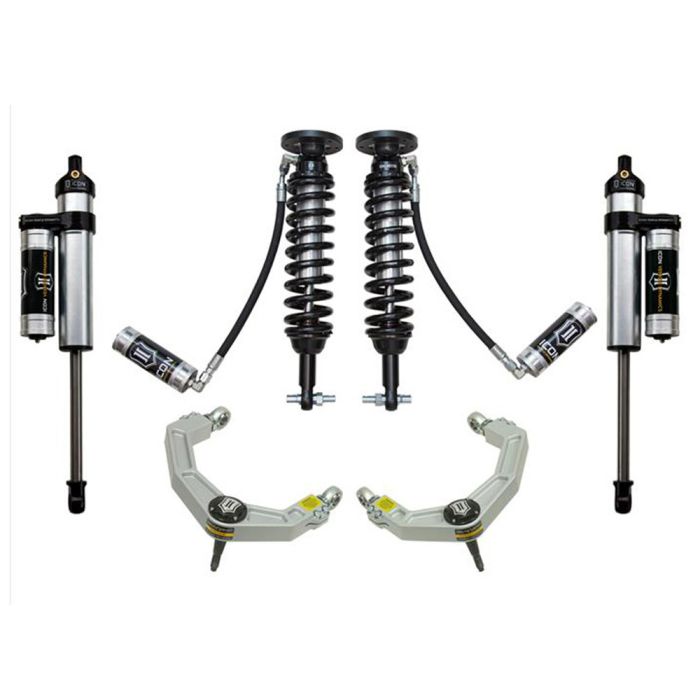

ICON Vehicle Dynamics Stage 4 Suspension System Lift Billet 2WD F-150 2014

The ICON Vehicle Dynamics Stage 4 Billet Lift Suspension System (K93074) for 2014 F-150s with 2WD is the ultimate upgrade for those seeking maximum performance from their truck. With increased wheel travel and ride quality over stock, this system delivers superior damping and control on any terrain. FK rod end bearings ensure extended longevity and minimal deflection for added durability. Unique valves developed specifically for the lighter weight of the F-150, external reservoirs, and vehicle-specific tuned front and rear shocks all contribute to the unmatched performance this system delivers.

Features and Benefits:
- Increased wheel travel and ride quality over stock
- Retains maximum towing capacity
- FK rod end bearings for extended longevity and minimal deflection
- Unique valving developed specifically for the lighter weight of the F-150
- External reservoirs for cooler operating temperatures
- Vehicle-specific tuned front and rear shocks
- Superior damping and control
- Billet UCAs for added strength, durability, and alignment geometry
- Adjustable coilovers provide 1.75-2.63” lift height
- 6061 aircraft-grade aluminum CNC machined components
- Corrosion-resistant CAD-plated shock bodies with 7/8” shaft
- High-strength alloy CNC machined lower bar pins
- ICON 2.5” Aluminum Series rear shocks
- Hard anodized, impact-extruded aluminum cylinders
- Delta Joint combines uniball performance with ball joint durability
- Direct bolt-on installation with no cutting or welding required
- Made in the USA

The billet upper control arms offer added strength and alignment geometry, while adjustable coilovers provide 1.75-2.63” of lift height over stock. With a direct bolt-on installation and no cutting or welding required, this suspension system upgrade provides your ride with the stability and performance needed to tackle any off-road adventure.

Vehicle Fitment:
- 2014 F-150s
- Fits 2WD models

Additional Notes:
- OEM wheels and tire fitment: not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace are recommended.
- Recommended aftermarket wheels: 17x8.5" w/ 5.00” backspace / 6mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.25" backspace / 6mm offset
- Recommended aftermarket wheels: 20x9" w/ 5.625" backspace / 16mm offset
- Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Ships in multiple boxes.
