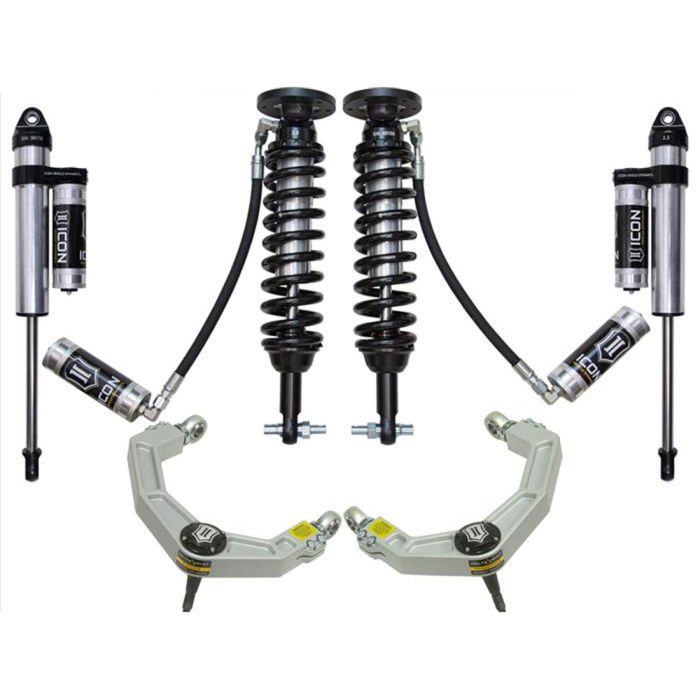

ICON Vehicle Dynamics Stage 4 Suspension System Lift Billet 2WD F-150 2015-2020

Upgrade your F-150 with the serious power of the ICON Vehicle Dynamics Stage 4 Billet Lift Suspension System (K93094). Engineered for the 2015-2020 F-150s with 2WD, this suspension system features unique valving, vehicle-tuned shocks, and adjustable coilovers for impeccable control and damping. You'll experience superior wheel travel and ride quality over stock, without sacrificing maximum towing capacity.

Features and Benefits:
- Increased wheel travel and ride quality over stock
- Retains maximum towing capacity
- FK rod end bearings for extended longevity and minimal deflection
- Unique valving developed specifically for the lighter weight of the 2015+ F-150
- Vehicle-specific tuned front and rear shocks
- Superior damping and control
- Billet UCAs for added strength, durability, and alignment geometry
- Adjustable coilovers provide 1.75-3” lift height
- 6061 aircraft-grade aluminum CNC machined components
- Corrosion-resistant CAD-plated shock bodies with 7/8” shaft
- High-strength alloy CNC machined lower bar pins
- ICON 2.5” Aluminum Series rear shocks
- Hard anodized, impact-extruded aluminum cylinders
- Delta Joint combines uniball performance with ball joint durability
- Direct bolt-on installation with no cutting or welding required
- Made in the USA

The system also includes billet upper control arms for added alignment geometry and strength, as well as FK rod end bearings for extended longevity and minimal deflection. Precision CNC machined from high-strength aircraft-grade aluminum, the lift suspension system is built to last and resist corrosion. With a direct bolt-on design and no cutting or welding required, installation is a breeze.

Vehicle Fitment:
- 2015-2020 F-150s
- Fits 2WD models

Additional Notes:
- OEM wheels and tire fitment: not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace are recommended.
- Recommended aftermarket wheels: 17x8.5" w/ 5.00” backspace / 6mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.25" backspace / 6mm offset
- Recommended aftermarket wheels: 20x9" w/ 5.625" backspace / 16mm offset
- Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Only compatible with 2-wheel drive (2WDRWD) models.
- Models equipped with Power-Stroke diesel engines will have a lift height range of 1.25-2.5” over stock.
- Included rear shocks are compatible with 0-1" of rear lift over stock on most models.
- Ships in multiple boxes.
