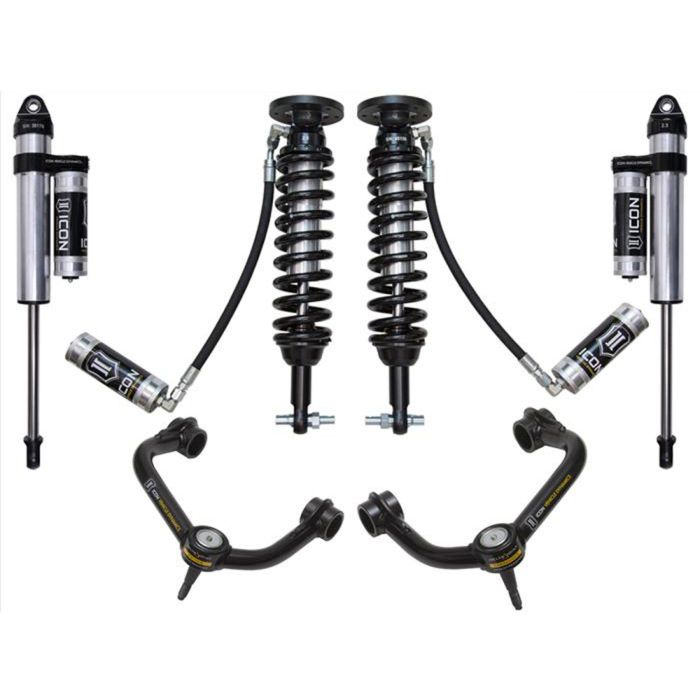

ICON Vehicle Dynamics Stage 4 Suspension System Lift Tubular 2WD F-150 2015-2020

If you're looking to take your 2015-2020 F-150's off-roading capabilities to the next level, the ICON Vehicle Dynamics Stage 4 Tubular Lift Suspension System (K93094T) is an impressive option. This robust system provides increased wheel travel and ride quality over stock while retaining maximum towing capacity. The unique valving means the vehicle-specific tuned front and rear shocks offer superior damping and control, along with the tubular upper control arms for added strength, durability, and alignment geometry.

Features and Benefits:
- Increased wheel travel and ride quality over stock
- Retains maximum towing capacity
- FK rod end bearings for extended longevity and minimal deflection
- Unique valving developed specifically for the lighter weight of the 2015-2020 F-150
- Vehicle-specific tuned front and rear shocks
- Superior damping and control
- Tubular UCAs for added strength, durability, and alignment geometry
- Adjustable coilovers provide 1.75-3” over stock
- 6061 aircraft-grade aluminum CNC machined components
- Corrosion-resistant CAD-plated shock bodies with 7/8” shaft
- High-strength alloy CNC machined lower bar pins
- ICON 2.5” Aluminum Series rear shocks
- Hard anodized, impact-extruded aluminum cylinders
- Delta Joint combines uniball performance with ball joint durability
- Direct bolt-on installation with no cutting or welding required
- Made in the USA

This system is built to last thanks to corrosion-resistant CAD-plated shock bodies and 6061 aircraft-grade aluminum CNC machined components. Additionally, the Delta Joint combines uniball performance with ball joint durability, providing optimal suspension performance. The direct bolt-on installation means no cutting or welding is required. Made in the USA, this suspension system means business.

Vehicle Fitment:
- 2015-2020 F-150s
- Fits 2WD models

Additional Notes:
- OEM wheels and tire fitment: yes
- Recommended aftermarket wheels: 17x8.5" w/ 5.00” backspace / 6mm offset
- Recommended aftermarket wheels: 18x9" w/ 5.25" backspace / 6mm offset
- Recommended aftermarket wheels: 20x9" w/ 5.625" backspace / 16mm offset
- Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Only compatible with OE spindles. Do not install in combination with any aftermarket spindles.
- Only compatible with 2-wheel drive (2WD/RWD) models.
- Included tubular front upper control arms are optimized for front lift heights from 1.75-3" over stock.
- Models equipped with Power-Stroke diesel engines will have a lift height range of 1.25-2.5” over stock.
- Included rear shocks are compatible with 0-1" of rear lift over stock on most models.
- Ships in multiple boxes.
