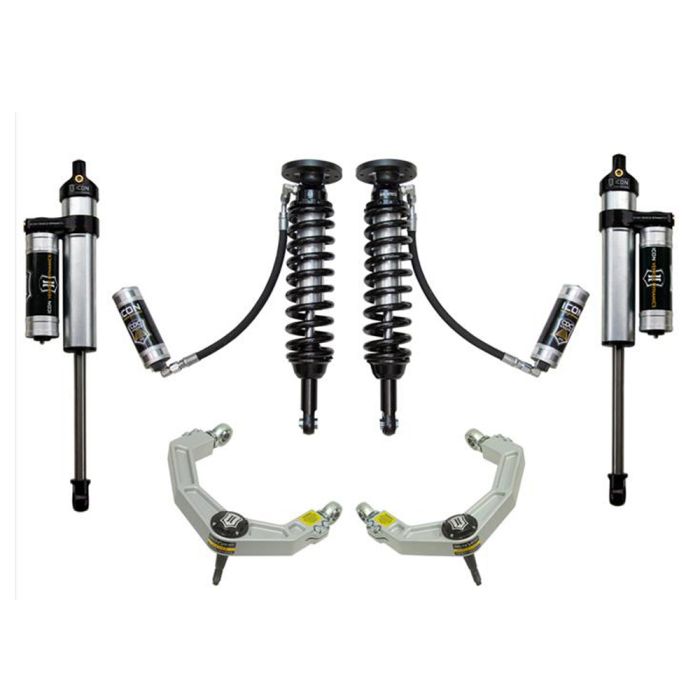

ICON Vehicle Dynamics Stage 4 Suspension System Billet 1.75-2.63” Lift 2WD F-150 2009-2013

Improve your F-150’s ability to tackle any terrain it encounters with the Stage 4 Suspension System from ICON Vehicle Dynamics. This system was designed for serious drivers looking to maximize the on- and off-road potential of their 2009-2013 2-wheel drive F-150, thanks to increased wheel travel and improved damping ability, both of which serve to provide outstanding vehicle control.

Features & Benefits:
- Increased Wheel Travel & Ride Quality
- Retains Original Towing Capacity
- Vehicle-Specific Front & Rear Valve Tuning
- 10-Step, Soft-to-Hard CDC Valve Adjustability
- Remote Shock Oil Reservoirs
- Superior Damping & Vehicle Control
- Adjustable Coilovers Yield 1.75-2.63” Lift Height
- ICON-Engineered Eibach Coil Springs
- Billet Aluminum Upper Control Arms
- Additional Strength, Durability, Adjustability, & Alignment Geometry
- ICON’s Patented High-Angle Delta Joint
- Aircraft-Grade 6061 Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Bodies with 7/8” Shafts
- 2.5 Series Rear Shocks with One-Piece, Impact Extruded Cylinders
- Excellent Corrosion-Resistance & Consistent Finish on Shocks
- FK Rod End Bearings for Extended Longevity & Minimal Deflection
- 100% Bolt-On System; No Cutting, Drilling, or Welding
- Made in the USA

The Stage 4 Suspension System utilizes vehicle-specific tuned 2.5” coilover shocks with remote reservoirs and CDCV for superior cooling and performance properties. ICON’s CDCV upgrade is included in this suspension system and allows for front and rear adjustability, with 10 soft-to-hard settings for unique valving. With ICON-engineered Eibach coil springs, you’ll notice an upgraded feel through the entire range of suspension travel. Best of all, the adjustable coilovers offer a lift range of 1.75-2.63” over stock, providing clearance for larger and more aggressive wheel and tire combinations.

This system boasts billet upper control arms to offer additional strength and durability while also retaining your factory alignment spec range by increasing caster over stock. Each upper control arm utilizes ICON’s patented Delta Joint. The Delta Joint fuses the performance characteristics of a uniball design with the durability of a ball joint, resulting in a heavy-duty high-angle ball joint that provides excellent articulation with little bind. With a zinc-plated housing, the Delta Joint is naturally corrosion resistant while a greaseable design doubles to block out harmful debris and offer noise-free operation.

Additional Information:
- OEM Wheels & Tires Fitment: Not Compatible with All Available OE Wheel/Tire Combinations
- Aftermarket Wheels with Lower Offset/Less Backspace Recommended
- Recommended Aftermarket Wheels: 17x8.5” with 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625” Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33” x 11.50”
- Larger Tires May Fit with Fender Trimming & Modifications
- Shocks are Fully Serviceable
- Coilover Heights Indicated Are for Stock-Equipped Vehicles

Vehicle Fitment:
- 2009-2013 Ford F-150
- 2-Wheel Drive Models
