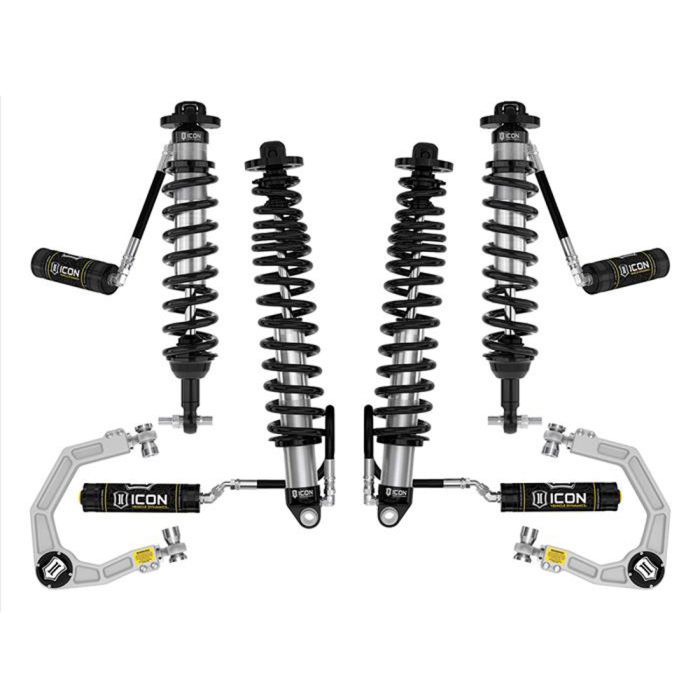

ICON Vehicle Dynamics Stage 4 Suspension System Billet 2"-3" Lift Bronco With Sasquatch Package 21-26

With precision-manufactured, custom-valved remote reservoir coilover shocks, the ICON Vehicle Dynamics Lift Stage 4 Suspension System offers maximum wheel travel for superior ride quality and suspension performance, on or off-road. Adjustable coilovers provide an adjustable ride height of 2-3” of front lift and 1.25-2.25” of rear lift. Remote reservoirs offer sustained shock performance in high speeds on rough terrain by greatly increase shock oil volume and heat dissipation, reducing damper fade. To accommodate for increased wheel travel and lift height, the Stage 4 System includes billet aluminum upper control arms for on-vehicle caster and camper adjustability. Triple-rate coil springs achieve maximum rear suspension travel for the best ride quality available.

Features & Benefits:
- Improved Suspension Performance & Ride Quality
- Up to 11.5” Front & 14” Rear Wheel Travel with 35” Tires
- Vehicle-Specific Tuned Remote Reservoir Front & Rear Coilovers
- Superior Damping and Vehicle Control
- Adjustable Coilovers Yield 2-3” Front & 1.25-2.25” Rear Lift
- PTFE-Lined Spherical Bearings & Application Specific Hardware
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Bodies
- ICON-Engineered Coil Springs with Triple-Rate Rear Coil Design
- High-Strength Alloy CNC-Machined Lower Bar Pins
- Billet Aluminum UCAs for Added Strength & Durability
- On-Vehicle Caster/Camber Adjustability
- Delta Point Pro with 90-Degrees of Total Articulation
- 100% Bolt-On Design, No Drilling, Cutting, or Welding
- Made in the USA

Additional Information:
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: 17x8.5” with 4.75” Backspace/0mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.00” Backspace/0mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.00” Backspace/0mm Offset
- Recommended Aftermarket Tires: 35” x 12.50”
- 37” Tires Require Coilover Bump Stop Spacers & Minor Trimming
- Shocks are Fully Serviceable. Light Heights Indicated for Stock-Equipped Vehicles
- 2-Door Models will Sit Taller than 4-Door Models
- When Running 37” Tires, Use Up Travel Limiters P/N: 611075 in Front
- When Running 37” Tires, Use Up Travel Limiters P/N: 611074 in Rear
- When Running Factory Lower Links, Use P/N: 611072
- Lift Heights & App Notes Based on Sasquatch Equipped Vehicles
- Tripe-Rate Rear Coils Optimized for Improved Suspension Performance & Ride Quality for Near-Stock Weight Bronco. Their Softer Initial Spring Rates Will Net Lower than Advertised Ride Heights as Weight is Added to Rear of Vehicle. For Heavier Equipped Broncos, Consider P/N: K40014X
- Bronco Everglades Will Have Front Lift Height Range of 1.5-2.5” Over Stock.

Vehicle Fitment:
- 2021-2026 Broncos with Sasquatch Package
* Will NOT Fit Bronco Raptor
