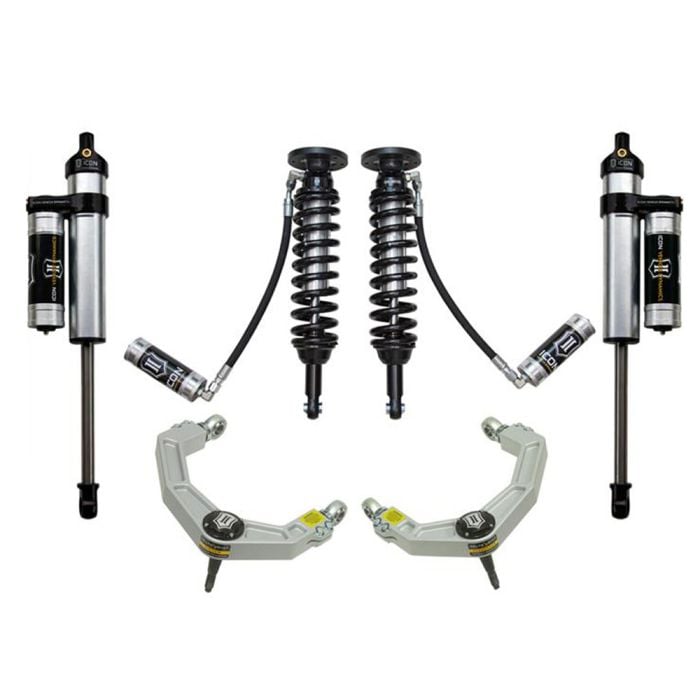

ICON Vehicle Dynamics Stage 4 Suspension System Billet 4-Wheel Drive F-150 2009-2013

Maximize your 2009-2013 F-150’s off-road potential with this ICON Vehicle Dynamics Stage 4 Billet Suspension System! Designed for 4-wheel drive models, this system improves wheel travel and ride quality without altering towing capacity. The rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance. They feature a vehicle-specific valving that balances the performance of the truck from front to rear along with ICON-engineered Eibach coil springs for superior experience during travel. The system includes vehicle-specific tuned 2.5” coilover shocks featuring an external remote reservoir for cooler operating temperatures during extended use. The front and rear reservoir shocks increase the duration of consistent damping contributing to cooler shock temperature.

Features and Benefits:
- Increased wheel travel and ride quality with no change in towing capacity
- Vehicle-specific tuned front and rear shocks for superior damping/vehicle control
- External reservoir for cooler operating temperatures during extended use
- Adjustable coilovers provide a 1.75”-2.63" lift
- Billet aluminum upper control arms for durability, adjustability, and alignment
- 6061 aircraft-grade aluminum CNC-machined components
- Corrosion-resistant CAD-plated coilover shock bodies with 7/8" shafts
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance
- FK Rod End bearings for longevity and minimal deflection
- Bolt-on installation
- No cutting or welding necessary

The adjustable coilovers provide a 1.75”-2.63” lift allowing larger wheel and tire combinations. Billet aluminum upper control arms provide durability, adjustability, and improved alignment. This system features upper control arms with ICON's patented Delta Joint, a heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. The Delta Joint features a corrosion-resistant zinc-plated housing followed by a tough grease seal to keep potentially harmful elements out of the inner workings of the joint. Its double metal construction and grease design increase longevity while offering noise-free operation!

Vehicle Fitment:
- 2009-2013 Ford F-150
*Fits 4-wheel drive models.

Additional Notes:
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations.
- Aftermarket wheels with lower offset/less backspace are recommended.
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: - 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required.)
- Shocks are fully serviceable. The Coilover heights indicated are for a stock-equipped vehicle.
