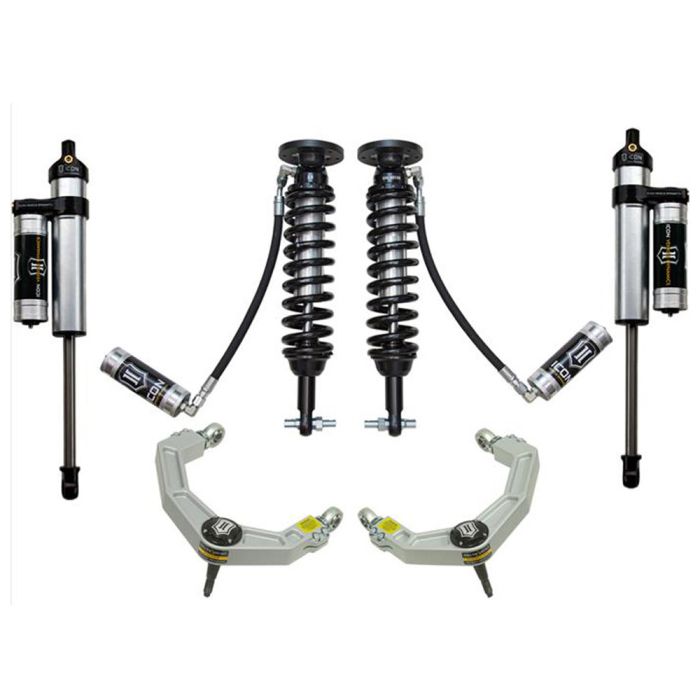

ICON Vehicle Dynamics Stage 4 Billet Suspension System 4WD F-150 2014

Designed for 2014 4-wheel drive F-150s, this ICON Vehicle Dynamics Stage 4 Billet Suspension System is the ideal solution to maximize on and off-road potential! The system includes vehicle-specific tuned 2.5” coilover shocks featuring an external remote reservoir for cooling properties along with ICON-engineered Eibach coil springs for an effortless experience through the range of travel. These coilovers are adjustable from 1.75” to 2.63” accommodating larger wheel and tire combinations. ICON 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance while utilizing a vehicle-specific valving that balances the performance of the truck from front to rear. 2.5" front and rear reservoir shocks ensure maximum performance by increasing the duration of consistent damping regardless of the situation, keeping the shocks at a cooler operating temperature during extended off-road use.

Features and Benefits:
- Increased wheel travel and ride quality with no change in towing capacity
- Vehicle-specific tuned front and rear shocks for superior damping/vehicle control
- External reservoir for cooler operating temperatures during extended off-road use
- Adjustable coilovers provide a 1.75”-2.63" lift
- Billet aluminum upper control arms for added durability, adjustability, and improved alignment
- CNC-machined 6061 aircraft-grade aluminum components
- Corrosion-resistant CAD-plated coilover shock bodies with 7/8" shafts
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for corrosion resistance
- FK Rod End bearings for longevity and minimal deflection
- Bolt-on installation
- No cutting or welding necessary

To further enhance the capabilities of your pickup, the billet aluminum upper control arms are durable, adjustable, and retain a factory alignment spec range. The system’s upper control arms feature a heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball, known as a Delta Joint. The Delta Joint features zinc-plated housing followed by a layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. A double metal construction provides long-lasting performance while allowing noise-free operation. This unique Delta Joint provides the ICON upper control arms with the capability of greater angularity than a typical ball joint!

Vehicle Fitment:
- 2014 Ford F-150
*Fits 4WD models.

Additional Notes:
- OEM wheel & tire fitment: not compatible with all available OE wheel/tire combinations.
- Aftermarket wheels with lower offset/less backspace are recommended.
- Recommended aftermarket wheels: 17” x 8.5" w/ 5.00” backspace / 6mm offset
- Recommended aftermarket wheels: 18” x 9" w/ 5.25" backspace / 6mm offset
- Recommended aftermarket wheels: 20” x 9" w/ 5.625" backspace / 16mm offset
- Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and
- modifications will be required.)
- Shocks are fully serviceable. The Coilover heights indicated are for a stock-equipped vehicle.
- Included rear shocks are compatible with 0-1" of rear lift over stock on most models.
- Not compatible with models equipped with CNG or LPG-fueled engines.
