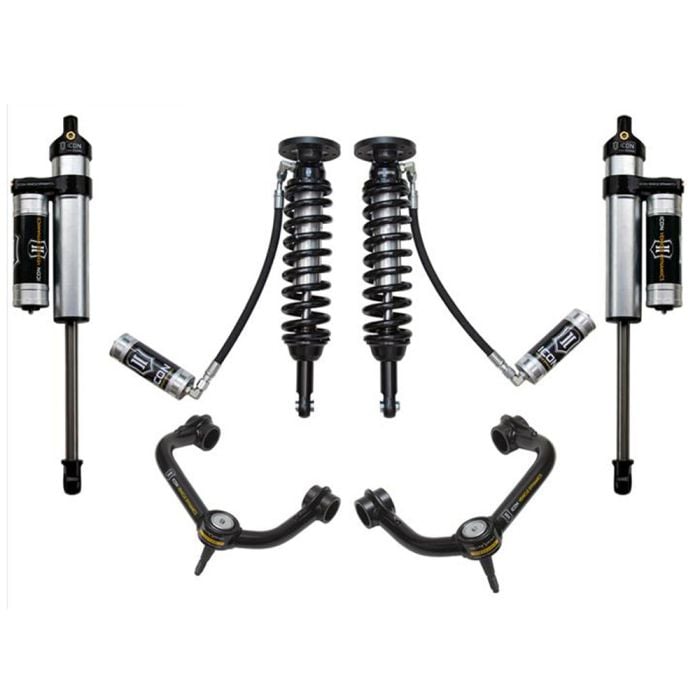

ICON Vehicle Dynamics Stage 4 Suspension System Tubular 4-Wheel Drive F-150 2009-2013

Maximize your 2009-2013 4WD F-150’s off-road potential with this Stage 4 Tubular Suspension System by ICON Vehicle Dynamics! The system features vehicle-specific tuned 2.5” coilover shocks, these coilovers provide an adjustable 1.75”-2.63” lift allowing larger wheel and tire combinations. ICON 2.5 Aluminum Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. Its 2.5" front and rear reservoir shocks ensure superior performance by increasing the duration of consistent damping, keeping the shocks at a cooler operating temperature during extended off-road use.

Features and Benefits:
- Increases wheel travel, vehicle control, and ride quality
- No change in towing capacity
- Vehicle-specific tuned front and rear shocks for superior damping
- External reservoir for cooler operating temperatures during extended off-road use
- Adjustable coilovers provide an adjustable 1.75”-2.63” lift
- Tubular upper control arms for added strength, durability, and alignment
- CNC-machined, 6061 aircraft-grade aluminum components
- Corrosion-resistant CAD-plated coilover shock bodies with 7/8" shafts
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance
- FK Rod End bearings for longevity and minimal deflection
- Bolt-on design
- No cutting or welding necessary
- ICON-engineered Eibach coil springs for a superior experience through the range of travel

Tubular upper control arms on the F-150 are durable and retain factory alignment. This system features upper control arms with a high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball, known as a delta joint. The delta joint features a zinc-plated housing providing the first layer of corrosion resistance, and a tough grease seal keeping harmful elements out of the inner workings of the joint. Its double-metal construction and grease design provide long-lasting performance and noise-free operation!

Vehicle Fitment:
- 2009-2013 Ford F-150
*Fits 4-wheel drive models.

Additional Notes:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (larger tires may fit, but fender trimming and modifications will be required.)
- Are fully serviceable. The Coilover heights indicated are for a stock-equipped vehicle.
