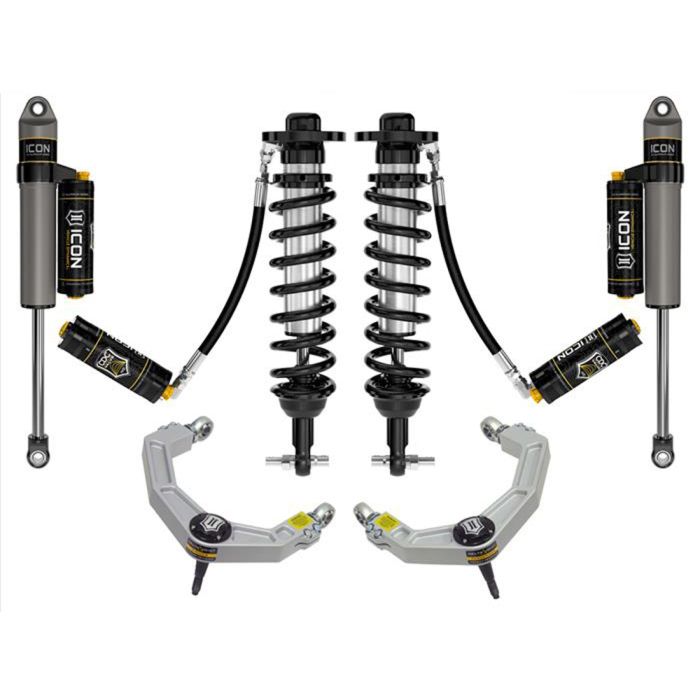

ICON Vehicle Dynamics Stage 5 Suspension System Billet 0-3” Lift 2-Wheel Drive F-150 2021-2023

When the time comes to upgrade your 2021-2023 F-150's suspension system for both on and off-road driving, look no further than the Stage 5 Suspension System from ICON Vehicle Dynamics. This system was specifically designed to increase wheel travel and damping ability, which leads to superior vehicle control and ride quality. Thanks to the 2.5" coilover shocks with vehicle-specific tuning and external remote reservoirs with compression damping control valve (CDCV), you'll experience exceptional cooling and anti-damping fade properties, even when pushing your F-150's capabilities to the limit. Plus, with adjustable coilovers that offer a lift height ranging from 0-3" over stock, you'll have the option to swap in more aggressive wheel and tire choices without sacrificing driveability.

Features & Benefits:
- Increased Wheel Travel & Ride Quality Over Stock
- Improved Suspension Performance & Ride Quality
- Retains Factory Towing Capacity
- Vehicle-Specific Tuned Front & Rear Shocks
- Superior Damping & Vehicle Control
- Adjustable Coilovers Yield 0-3” Lift Height
- ICON CDCV-Equipped Front & Rear Shocks
- Full Shock Compression Tuneability
- Billet Aluminum Upper Control Arms
- Additional Strength, Durability, Adjustability, & Improved Alignment
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Bodies with 7/8” Shafts
- FK Rod End Bearings for Extended Longevity & Minimal Deflection
- 2.5 Aluminum Rear Shocks, One-Piece Impact Extruded Aluminum Cylinders
- Excellent Corrosion Resistance & Consistent Finish
- Bolt-On System, No Cutting or Welding Necessary
- Made in the USA

To give your F-150 an extra boost of strength and durability, this kit includes billet aluminum upper control arms. Not only will these control arms help increase your truck's caster over stock, but you'll also be able to maintain your factory alignment spec range. These control arms come equipped with ICON's patented Delta Joint system, combining the performance of a uniball with the durability of a ball joint. The zinc-plated housing provides corrosion resistance, while a tough grease seal keeps dust and debris out, ensuring reliable and noise-free operation. If you're looking for a reliable and efficient way to toughen up your F-150, billet aluminum upper control arms are a fantastic option.

Additional Information:
- OEM Wheels & Tires fitment: Not Compatible with All OE Wheel/Tire Combinations
- Aftermarket Wheels with Lower Offset/Backspace Recommended
- Recommended Aftermarket Wheels: 17x8.5” with 5.00” Backspace/6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace/6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625 Backspace/16mm Offset
- Recommended Aftermarket Tires: 33” x 11.50”
- Tires Larger than 33” May Require Trimming/Modifications
- Shocks Fully Serviceable. Coilover Heights Indicated for Stock Equipped Vehicle
- Will NOT Work with Factory Installed Electronically Controlled Suspension
- Included Rear Shocks Compatible with 0-1” of Rear Lift Over Stock
- Models Equipped with PowerBoost Hybrid Engines will Have Lift Height Range of 0-2.75” Over Stock
- Models Equipped with Power-Stroke Diesel Engines will Have Lift Height Range of 0-2.5” Over Stock

Vehicle Fitment:
- 2021-2023 Ford F-150s
- Two-Wheel Drive Models
* Not Compatible with Models Equipped with OnBoard Scales
* Not Compatible with Models Equipped with Blue Cruise
