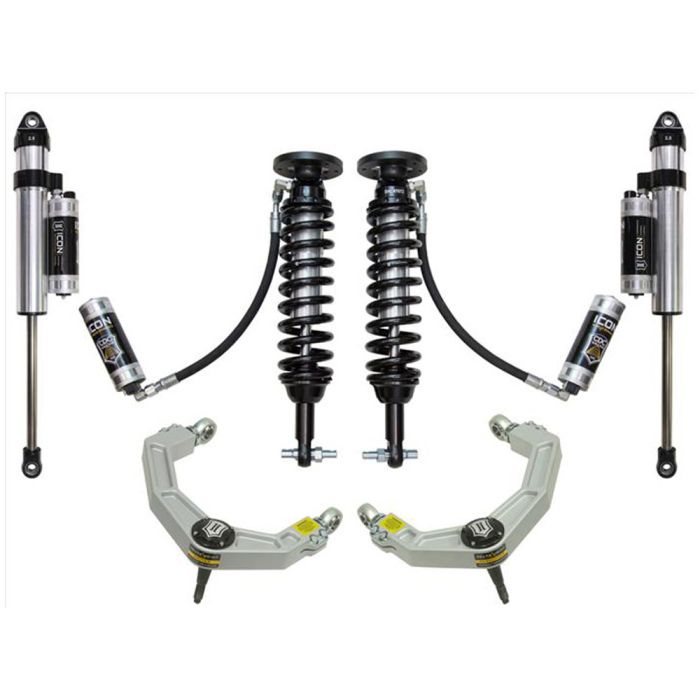

ICON Vehicle Dynamics Stage 5 Suspension System Billet 1.75-3” Lift 2WD F-150 2015-2020

ICON Vehicle Dynamics designed their Stage 5 Billet Suspension System to provide your F-150 with outstanding vehicle control and ride quality, whether you’re on the street or off-road. This kit is specifically designed to increase wheel travel and damping ability. With 2.5” coilover shocks, featuring valves tuned specifically for 2015-2020 F-150s, and remote reservoirs to ensure cool temperatures to combat damping fade, you’ll experience superior vehicle “feel” through the whole range of travel. The adjustable coilovers offer a lift yield of 1.75-3” over stock.

Features & Benefits:
- Heavy-Duty, High-Angle Delta Joint
- Increased Wheel Travel & Ride Quality Over Stock
- Improved Suspension Performance
- Retains Factory Towing Capacity
- Vehicle-Specific Tuned Front & Rear Shocks
- Superior Damping & Vehicle Control
- Adjustable Coilovers Yield 1.75-3” Lift Height
- ICON CDCV-Equipped Front & Rear Shocks
- Full Shock Compression Tuneability
- Billet Aluminum Upper Control Arms
- Additional Strength, Durability, Adjustability, & Improved Alignment
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Bodies with 7/8” Shafts
- FK Rod End Bearings for Extended Longevity & Minimal Deflection
- 2.5 Aluminum Rear Shocks, One-Piece Impact Extruded Aluminum Cylinders
- Excellent Corrosion Resistance & Consistent Finish
- Bolt-On System, No Cutting or Welding Necessary

Not only will your F-150 receive an increased ride height, with billet aluminum upper control arms, but it will also receive additional strength and durability. ICON’s patented Delta Joint combines the performance of a uniball design with the durability of a ball joint, offering a heavy-duty high-angle ball unlike any other. Boasting a zinc-plated housing and grease seal, you’ll never have to question the integrity of the Delta Joint. Plus, the grease seal ensures a noise-free ride.

Additional Information:
- OEM Wheels & Tires Fitment: Not Compatible with All OE Wheel/Tire Combinations
- Aftermarket Wheels with Lower Offset/Less Backspace Recommended
- Recommended Aftermarket Wheels: 17x8.5” with 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625” Backspace / 16 Offset
- Recommended Aftermarket Tires: 33” x 11.50”
- Tires Larger than 33” x 11.50” May Fit with Fender Trimming and Modifications
- Shocks Are Fully Serviceable. Coilover Heights Indicated for Stock-Equipped Vehicle
- Only Compatible with Rear-Wheel-Drive Models
- Models Equipped with Power-Stroke Diesel Engines Will Have Lift Height Range of 1.25-2.5”
- Included Rear Shocks are Compatible with 0-1” of Rear Lift Over Stock

Vehicle Fitment:
- 2015-2020 Ford F-150s
- 2-Wheel Drive Models
