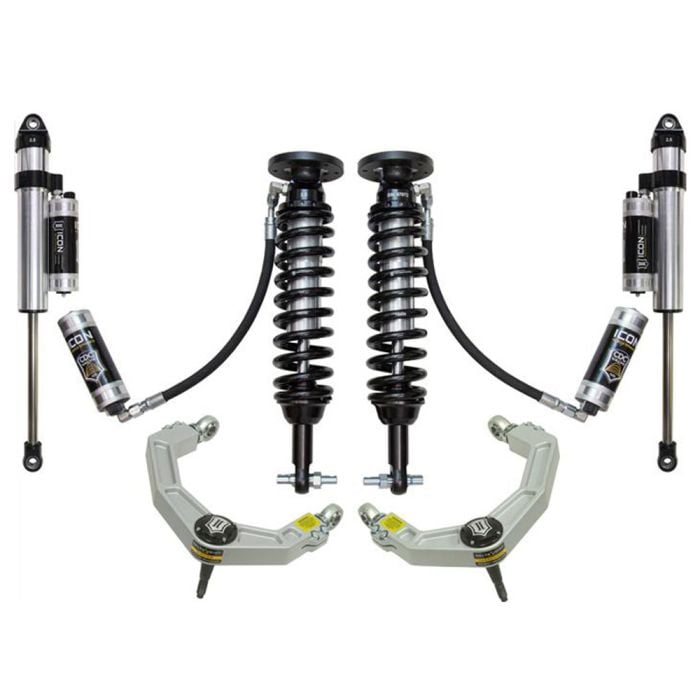

ICON Vehicle Dynamics Stage 5 Suspension System Billet 2-2.63” Lift 4-Wheel Drive F-150 2015-2020

Designed with the singular goal of providing superior performance, the Stage 5 Suspension System from ICON Vehicle Dynamics is a game-changer. This kit is designed for 2015-2020 F-150s with a focus on improved wheel travel and damping ability. Adjustable coilovers offer a lift yield of 2-2.63” over stock in corrosion-resistant CAD-plated shock bodies and 7/8” shafts. Both front and rear shocks are custom tuned specifically for 2015-2020 F-150s for superior damping and vehicle control.

Features & Benefits:
- Increased Wheel Travel & Ride Quality Over Stock
- Improved Suspension Performance & Ride Quality
- Retains Factory Towing Capacity
- Vehicle-Specific Tuned Front & Rear Shocks
- Superior Damping & Vehicle Control
- Adjustable Coilovers Yield 2-2.63” Lift Height
- ICON CDCV-Equipped Front & Rear Shocks
- Full Shock Compression Tuneability
- Billet Aluminum Upper Control Arms
- Additional Strength, Durability, Adjustability, & Improved Alignment
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Bodies with 7/8” Shafts
- FK Rod End Bearings for Extended Longevity & Minimal Deflection
- 2.5 Aluminum Rear Shocks, One-Piece Impact Extruded Aluminum Cylinders
- Excellent Corrosion Resistance & Consistent Finish
- Bolt-On System, No Cutting or Welding Necessary

To provide your F-150 with additional strength, durability, and alignment spec range, this kit includes high-quality billet aluminum upper control arms. With this additional durability, you’ll never have to worry about off-roading over difficult terrain. A patented Delta Joint system combines the durability of a ball joint with the performance characteristics of a traditional uniball, resulting in an unmatched high ball joint that exceeds industry standards. In a zinc-plated housing and a tough grease seal, you’ll never have to worry about your Delta Joints being compromised by the elements.

Additional Information:
- OEM Wheels & Tires fitment: Not Compatible with All OE Wheel/Tire Combinations
- Aftermarket Wheels with Lower Offset/Backspace Recommended
- Recommended Aftermarket Wheels: 17x8.5” with 5.00” Backspace/6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace/6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625 Backspace/16mm Offset
- Recommended Aftermarket Tires: 33” x 11.50”
- Tires Larger than 33” May Require Trimming/Modifications
- Shocks Fully Serviceable. Coilover Heights Indicated for Stock Equipped Vehicle
- Will NOT Work with Factory Installed Electronically Controlled Suspension
- Included Rear Shocks Compatible with 0-1” of Rear Lift Over Stock
- Models Equipped with Power-Stroke Diesel Engines will Have Lift Height Range of 1.5-2.13” Over Stock

Vehicle Fitment:
- 2015-2020 Ford F-150s
- Four-Wheel Drive Models
