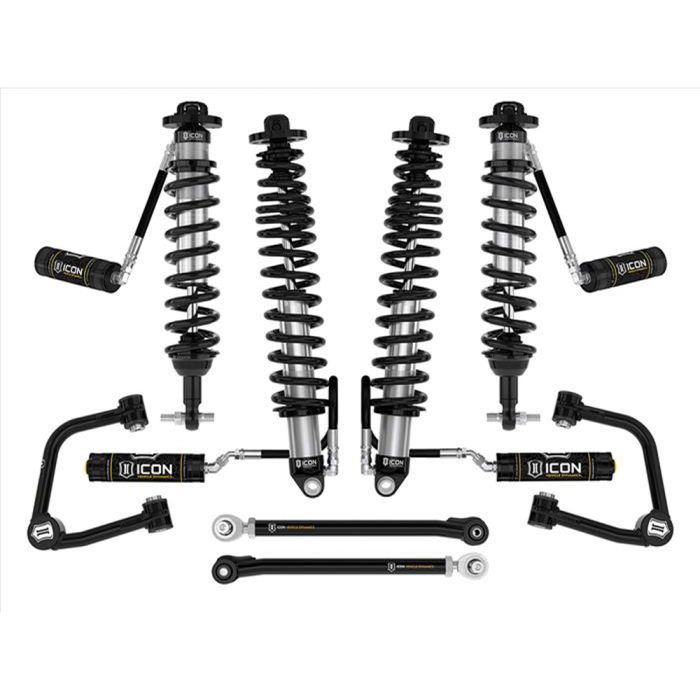

ICON Vehicle Dynamics Stage 5 Suspension System Billet 2-3” Lift Bronco Sasquatch 2021-2024

For those looking to enhance the handling and performance of their 2021-2024 Bronco, the Stage 5 Lift Suspension System from ICON Vehicle Dynamics can do just that. This system is specifically designed to allow the Bronco's rear suspension to articulate more freely while also adding strength and clearance. One key feature of this system is the use of billet aluminum rear lower suspension links equipped with dual-durometer greaseless bushings and large FK rod ends. This combination provides both the necessary articulation and ride quality that drivers demand. Additionally, billet aluminum upper control arms give on-vehicle adjustability, allowing for fine-tuning of caster and camber adjustments as needed. With the Stage 5 Lift Suspension System from ICON Vehicle Dynamics, your Bronco will be ready to take on any terrain with ease and confidence.

Features & Benefits:
- Improved Suspension Performance & Ride Quality
- Up to 11.5” Front & 14” Rear Wheel Travel with 35” Tires
- Vehicle-Specific Tuned Remote Reservoir Front & Rear Coilovers
- Remote Reservoirs Increase Shock Oil Volume & Heat Dissipation
- Superior Damping and Vehicle Control
- Adjustable Coilovers Yield 2-3” Front & 1.25-2.25” Rear Lift
- PTFE-Lined Spherical Bearings & Application Specific Hardware
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Bodies
- ICON-Engineered Coil Springs with Dual-Rate Rear Coil Design
- High-Strength Alloy CNC-Machined Lower Bar Pins
- Billet Aluminum Upper Control Arms Provide Caster/Camber Correction
- Billet Rear Lower Links Improve Rear End Articulation
- On-Vehicle Pinion Angle Adjustment
- 100% Bolt-On Design, No Drilling, Cutting, or Welding
- Made in the USA

ICON's Stage 5 Suspension System combines custom-valved remote reservoir coilover shocks with abundant shock oil to improve your ride quality and suspension performance both on and off the road. The remote reservoirs also provide improved heat dissipation surface area, which reduces overheating and damper fade for sustained performance. With as much wheel travel as possible, you'll be able to tackle rock trails with ease and agility. With this system, you'll enjoy an impressive 11.5 inches of front suspension travel and 14 inches in the rear, even when you're rolling on 35x12.50-inch tires.

Additional Information:
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: 17x8.5” with 4.75” Backspace/0mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.00” Backspace/0mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.00” Backspace/0mm Offset
- Recommended Aftermarket Tires: 35” x 12.50”
- 37” Tires Require Coilover Bump Stop Spacers & Minor Trimming
- Shocks are Fully Serviceable. Light Heights Indicated for Stock-Equipped Vehicles
- 2-Door Models will Sit Taller than 4-Door Models
- When Running 37” Tires, Use Up Travel Limiters P/N: 611075 in Front
- When Running 37” Tires, Use Up Travel Limiters P/N: 611074 in Rear
- Lift Heights & App Notes Based on Sasquatch Equipped Vehicles
- Bronco Everglades Will Have Front Lift Height Range of 1.5-2.5” Over Stock.

Vehicle Fitment:
- 2021-2024 Broncos
- Modes Equipped with Sasquatch Suspension Package
* Will NOT Fit Bronco Raptor
