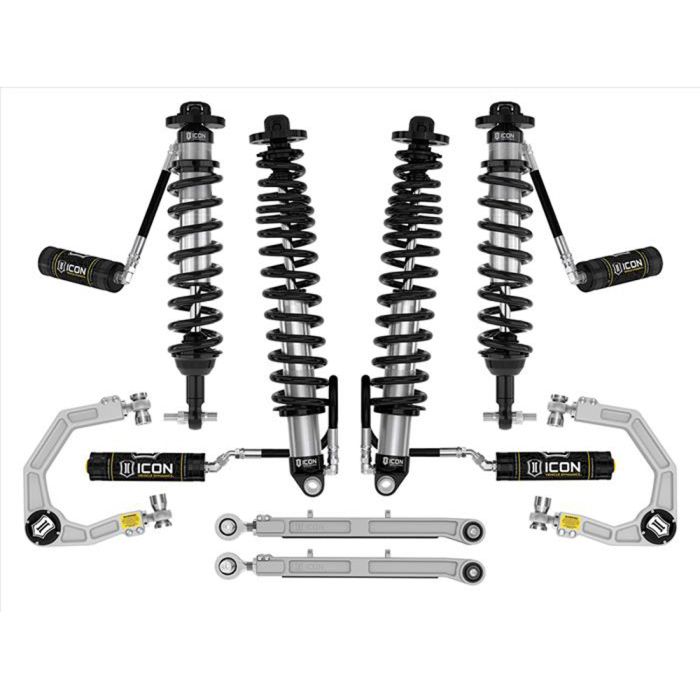

ICON Vehicle Dynamics Stage 5 Suspension System Billet 3-4” Lift Bronco Non-Sasquatch 2021-2024

Overhaul the handling and performance of your 2021-2024 Bronco with the Stage 5 Lift Suspension System from ICON Vehicle Dynamics. Designed to free the Bronco’s rear suspension articulation while adding strength and clearance, the stage 5 system uses billet aluminum rear lower suspension links. Each link utilizes a dual-durometer greaseless bushing at one end and a large FK rod end at the other for a combination of free articulation and ride quality. Likewise, billet aluminum upper control arms offer on-vehicle adjustability, allowing you to fine-tune your caster and camber adjustments on the fly.

Features & Benefits:
- Improved Suspension Performance & Ride Quality
- Up to 11.5” Front & 14” Rear Wheel Travel with 35” Tires
- Vehicle-Specific Tuned Remote Reservoir Front & Rear Coilovers
- Remote Reservoirs Increase Shock Oil Volume & Heat Dissipation
- Superior Damping and Vehicle Control
- Adjustable Coilovers Yield 3-4” Front & 2-3” Rear Lift
- PTFE-Lined Spherical Bearings & Application Specific Hardware
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Bodies
- ICON-Engineered Coil Springs with Triple-Rate Rear Coil Design
- High-Strength Alloy CNC-Machined Lower Bar Pins
- Billet Aluminum Upper Control Arms Provide Caster Correction
- Billet Rear Lower Links Improve Rear End Articulation
- On-Vehicle Pinion Angle Adjustment
- 100% Bolt-On Design, No Drilling, Cutting, or Welding
- Made in the USA

Custom-valved remote reservoir coilover shocks improve ride quality and suspension performance on and off-road by allowing as much wheel travel as possible. Each remote reservoir provides abundant shock oil, allowing for improved heat dissipation surface area, reducing overheating and damper fade, meaning sustained performance while tackling rock trails. With ICON’s Stage 5 Suspension System, you’ll have 11.5” of front suspension travel with 14” of travel in the rear while running 35x12.50” tires.

Additional Information:
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: 17x8.5” with 4.75” Backspace/0mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.00” Backspace/0mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.00” Backspace/0mm Offset
- Recommended Aftermarket Tires: 35” x 12.50”
- 37” Tires Require Coilover Bump Stop Spacers & Minor Trimming
- Shocks are Fully Serviceable. Light Heights Indicated for Stock-Equipped Vehicles
- 2-Door Models will Sit Taller than 4-Door Models
- When Running 37” Tires, Use Up Travel Limiters P/N: 611075 in Front
- When Running 37” Tires, Use Up Travel Limiters P/N: 611074 in Rear
- Lift Heights & App Notes Based on Non-Sasquatch Equipped Vehicles
- Recommend High-Clearance Crash Bars P/N: 4200 on Non-Sasquatch Vehicle with 35” Tires
- When Running 37” Tires Crash Bar Removal May Be Required, Not Recommended
- Tripe-Rate Rear Coils Optimized for Improved Suspension Performance & Ride Quality for Near-Stock Weight Bronco. Their Softer Initial Spring Rates Will Net Lower than Advertised Ride Heights as Weight is Added to Rear of Vehicle. For Heavier Equipped Broncos, Consider P/N: K40003X

Vehicle Fitment:
- 2021-2024 Broncos
- Base, Big Bend, Outer Banks, & Black Diamond Trim Levels
* Will NOT Fit Models with Sasquatch Suspension
* Will NOT Fit Bronco Raptor
