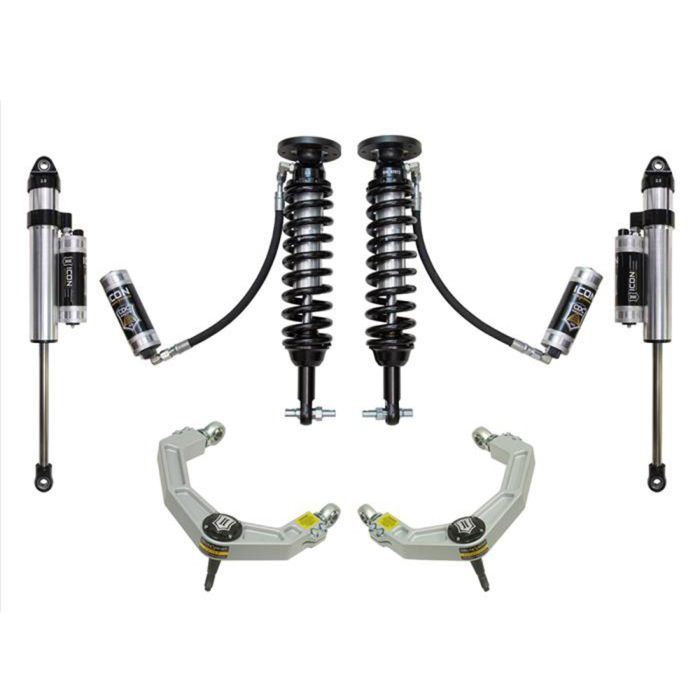

ICON Vehicle Dynamics Stage 5 Suspension System Billet Lift Kit 4WD F-150 2014

The Stage 5 Suspension System from ICON Vehicle Dynamics was designed with the primary goal of increasing wheel travel and damping ability, resulting in outstanding vehicle control and ride quality for 2014 F-150s, both on and off-road. This enhanced handling is possible due to 2.5” coilover shocks that boast vehicle-specific tuning and external remote reservoirs with compression damping control valve (CDCV). The result of CDCV is exceptional cooling properties to combat damper fade, retaining a superior vehicle feel through the entire range of travel. Each adjustable coilover yields a lift height from 1.75-2.63” over stock for more aggressive wheel and tire options.

Features & Benefits:
- Increased Wheel Travel & Ride Quality Over Stock
- Improved Suspension Performance & Ride Quality
- Retains Factory Towing Capacity
- Vehicle-Specific Tuned Front & Rear Shocks
- Superior Damping & Vehicle Control
- Adjustable Coilovers Yield 1.75-2.63” Lift Height
- ICON CDCV-Equipped Front & Rear Shocks
- Full Shock Compression Tuneability
- Billet Aluminum Upper Control Arms
- Additional Strength, Durability, Adjustability, & Improved Alignment
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Bodies with 7/8” Shafts
- FK Rod End Bearings for Extended Longevity & Minimal Deflection
- 2.5 Aluminum Rear Shocks, One-Piece Impact Extruded Aluminum Cylinders
- Excellent Corrosion Resistance & Consistent Finish
- Bolt-On System, No Cutting or Welding Necessary
- Made in the USA

With billet aluminum upper control arms, your F-150 will have additional strength and durability as well as a retained factory alignment spec range and increased caster over stock. The control arms also feature ICON’s patented Delta Joint system. The Delta Joint is a heavy-duty high-angle ball joint that combines performance characteristics of a uniball with the durability of a ball joint. With a zinc-plated housing that offers corrosion resistance and a tough grease seal to keep out dust and debris, the Delta Joint boasts reliable and noise-free operation.

Additional Information:
- OEM Wheels & Tires fitment: Not Compatible with All OE Wheel/Tire Combinations
- Aftermarket Wheels with Lower Offset/Backspace Recommended
- Recommended Aftermarket Wheels: 17x8.5” with 5.00” Backspace/6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace/6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625 Backspace/16mm Offset
- Recommended Aftermarket Tires: 33” x 11.50”
- Tires Larger than 33” May Require Trimming/Modifications
- Shocks Fully Serviceable. Coilover Heights Indicated for Stock Equipped Vehicle
- Included Rear Shocks Compatible with 0-1” of Rear Lift Over Stock

Vehicle Fitment:
- 2021-2023 Ford F-150s
- Four-Wheel Drive Models
* Not Compatible with Models Equipped with CNG or LPG Fueled Engines
