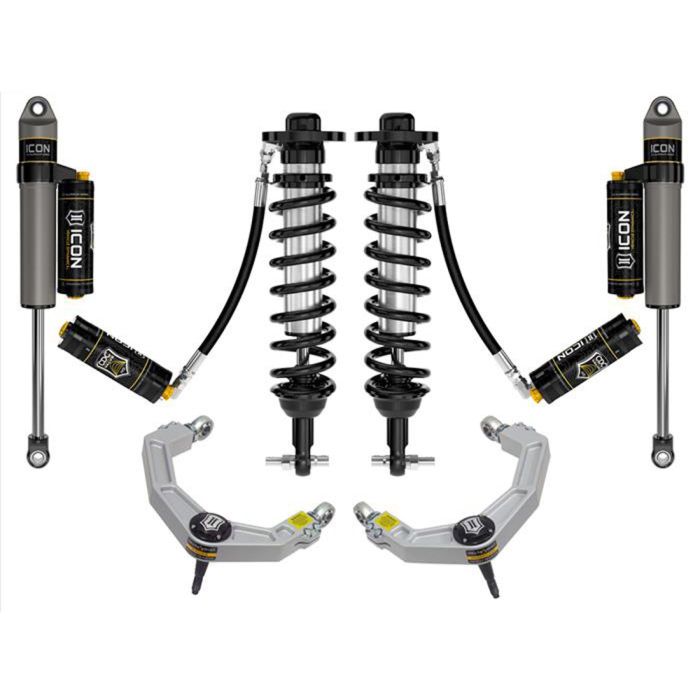

ICON Vehicle Dynamics Stage 5 Suspension System Billet Lift Kit F-150 2021-2023

The Stage 5 Suspension System for 2021-2023 Ford F-150s is a game-changer in the world of suspension systems. This advanced system comes from ICON Vehicle Dynamics equipped with remote reservoir shocks that will elevate your driving experience, regardless of whether you're traversing highways or exploring off-road terrains. The compression damping control valves allow you to tailor your suspension's performance to your specific needs, providing added control and stability when you need it most. Moreover, the adjustable coilovers yield 0-2.75 inches of ride height lift, ensuring that your suspension system is perfectly suited to your driving style. Whether you're looking to enhance the performance of your truck, explore new terrains, or simply enjoy a smoother ride, the ICON Vehicle Dynamics Stage 5 Suspension System is the perfect choice for you.

Features & Benefits:
- Improved Suspension Performance & Ride Quality
- Increased Wheel Travel & Ride Quality Over Stock
- Retains Factory Towing Capacity
- Corrosion-Resistant CAD-Plated Coilover Shock Bodies with 7/8” Shaft
- Remote Reservoirs Increase Shock Oil Volume & Heat Dissipation
- High-Strength Alloy CNC-Machined Lower Bar Pin
- FK Rod Bearings for Extended Longevity & Minimal Deflection
- 2.5 Aluminum Series Rear Shocks
- Hard Anodized, One-Piece Impact Extruded Aluminum Cylinders
- Corrosion-Resistant Rear Shocks
- Bolt-On System, No Cutting or Welding Necessary
- Vehicle-Specific Tuned Front & Rear Shocks
- Adjustable Coilovers Yield 0-2.75” Lift Height
- Billet Aluminum Upper Control Arms
- Additional Strength, Durability, & Alignment Spec Range
- Quick & Easy Compression Adjustment
- Made in the USA

When it comes to optimizing the performance of your F-150, it's important to have a suspension system that can effectively balance the vehicle from front to rear. The billet upper control arms in this system are crafted from aluminum, delivering added strength and alignment spec range. Meanwhile, the rear lower links are also billet and include dual-durometer greaseless bushings on one end and FK rod ends at the other. This offers complete flexibility in terms of adjustability while on the road. Overall, this suspension system is an impressive blend of functionality and reliability that's sure to elevate your driving experience in the F-150.

Additional Information:
- OEM Wheels & Tires fitment: Not Compatible with All OE Wheel/Tire Combinations
- Aftermarket Wheels with Lower Offset/Backspace Recommended
- Recommended Aftermarket Wheels: 17x8.5” with 5” Backspace/6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace/6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625 Backspace/16mm Offset
- Recommended Aftermarket Tires: 33” x 11.50”
- Tires Larger than 33” May Require Trimming/Modifications
- Shocks Fully Serviceable. Coilover Heights Indicated for Stock Equipped Vehicle
- Will Not Work with Factory Installed Electronically Controlled Suspension
- Models Equipped with PowerBoost Hybrid Engines will have 0-2.5” Lift Height Range
- Models Equipped with Power-Stroke Diesel Engines will have 0-2.25” Lift Height Range
- Included Rear Shocks Compatible with 0-1” of Rear Lift Over Stock

Vehicle Fitment:
- 2021-2023 Four-Wheel Drive Ford F-150s
* Not Compatible with F-150 Tremor or F-150 Raptor
* Not Compatible with Models Equipped with OnBoard Scales
* Not Compatible with F-150s Equipped with BlueCruise
