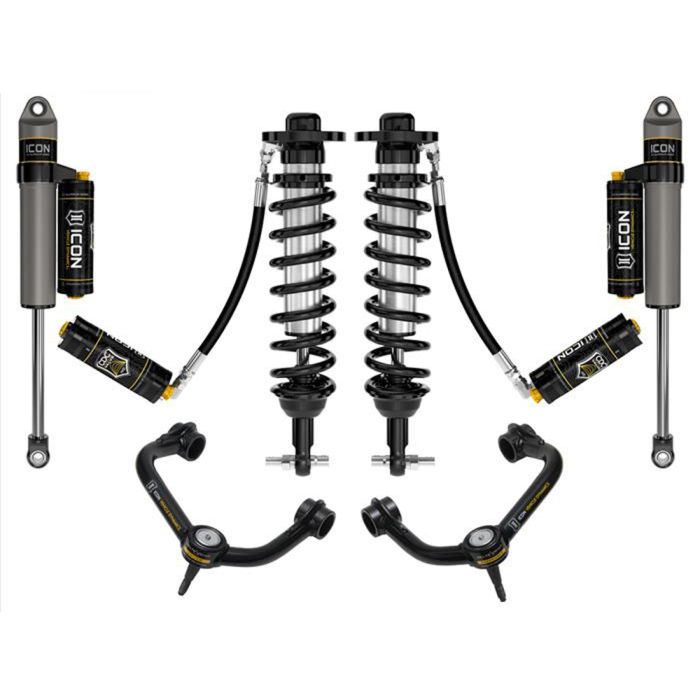

ICON Vehicle Dynamics Stage 5 Suspension System Tubular 0-3” Lift 2-Wheel Drive F-150 2021-2023

ICON Vehicle Dynamics' Stage 5 Suspension System is a game-changer for the 2021-2023 F-150. Designed with the goal of improving wheel travel and damping ability, this suspension system results in exceptional control and ride quality both on and off-road. With 2.5" coilover shocks and compression damping control valve, each adjustable coilover allows for a lift height of 0-3" over stock. The CDCV feature provides superior cooling properties to fight against damper fade, ensuring consistent performance even under the most extreme conditions. The Stage 5 Suspension System is the ultimate upgrade for those looking for a more aggressive look and feel for their F-150.

Features & Benefits:
- Increased Wheel Travel & Ride Quality Over Stock
- Improved Suspension Performance & Ride Quality
- Retains Factory Towing Capacity
- Vehicle-Specific Tuned Front & Rear Shocks
- Superior Damping & Vehicle Control
- Adjustable Coilovers Yield 0-3” Lift Height
- ICON CDCV-Equipped Front & Rear Shocks
- Full Shock Compression Tuneability
- Tubular Upper Control Arms
- Additional Strength, Durability, Adjustability, & Improved Alignment
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Bodies with 7/8” Shafts
- FK Rod End Bearings for Extended Longevity & Minimal Deflection
- 2.5 Aluminum Rear Shocks, One-Piece Impact Extruded Aluminum Cylinders
- Excellent Corrosion Resistance & Consistent Finish
- Bolt-On System, No Cutting or Welding Necessary
- Made in the USA

Upgrading the control arms on your F-150 with the Stage 5 tubular upper control arms can make a world of difference not only in terms of strength and durability but in handling and performance as well. With a retained factory alignment spec range and increased caster over stock, you'll be able to handle tough road terrains with ease. The patented Delta Joint system offered by ICON is a game-changer for heavy-duty high-angle ball joints that combine the best of a uniball and ball joint. These control arms come equipped with a tough, zinc-plated housing that offers excellent resistance against corrosion, making them reliable and noise-free. The added grease seal keeps out debris and dust, further enhancing their durability. Upgrade your F-150 with this kit’s tubular upper control arms and revolutionize your driving experience.

Additional Information:
- OEM Wheels & Tires fitment: Not Compatible with All OE Wheel/Tire Combinations
- Aftermarket Wheels with Lower Offset/Backspace Recommended
- Recommended Aftermarket Wheels: 17x8.5” with 5.00” Backspace/6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace/6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625 Backspace/16mm Offset
- Recommended Aftermarket Tires: 33” x 11.50”
- Tires Larger than 33” May Require Trimming/Modifications
- Shocks Fully Serviceable. Coilover Heights Indicated for Stock Equipped Vehicle
- Will NOT Work with Factory Installed Electronically Controlled Suspension
- Included Rear Shocks Compatible with 0-1” of Rear Lift Over Stock
- Models Equipped with PowerBoost Hybrid Engines will Have Lift Height Range of 0-2.75” Over Stock
- Models Equipped with Power-Stroke Diesel Engines will Have Lift Height Range of 0-2.5” Over Stock

Vehicle Fitment:
- 2021-2023 Ford F-150s
- Two-Wheel Drive Models
* Not Compatible with Models Equipped with OnBoard Scales
* Not Compatible with Models Equipped with BlueCruise
