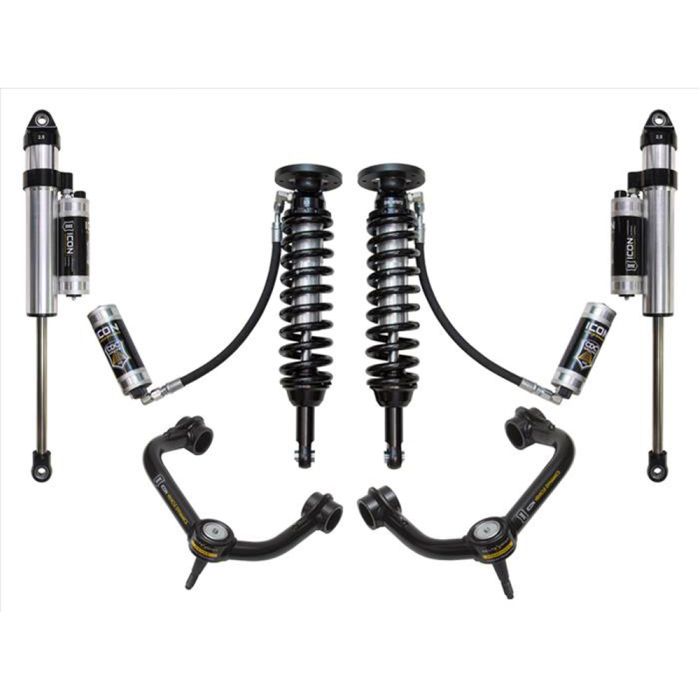

ICON Vehicle Dynamics Stage 5 Suspension System Tubular 1.75-2.63” Lift 4-Wheel Drive F-150 2009-2013

Equip your F-150 with high-quality on and off-road performance with the Stage 5 Tubular Suspension System from ICON Vehicle Dynamics. This suspension system is custom-tailored, featuring vehicle-specific tuned front and rear shocks, designed solely for 4WD 2009-2013 F-150s. Adjustable coilovers offer a lift height from 1.75-2.63” allowing for more aggressive wheel and tire combinations so you can tackle rocky terrain with confidence. Best of all, you can fine-tune your handling on the go with 10 soft-to-hard adjustment settings.

Features & Benefits:
- Heavy-Duty, High-Angle Delta Joint
- Increased Wheel Travel & Ride Quality Over Stock
- Improved Suspension Performance
- Retains Factory Towing Capacity
- Vehicle-Specific Tuned Front & Rear Shocks
- Superior Damping & Vehicle Control
- Adjustable Coilovers Yield 1.75-2.63” Lift Height
- ICON CDCV-Equipped Front & Rear Shocks
- Full Shock Compression Tuneability
- Tubular Upper Control Arms
- Additional Strength, Durability, Adjustability, & Improved Alignment
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Bodies with 7/8” Shafts
- FK Rod End Bearings for Extended Longevity & Minimal Deflection
- 2.5 Aluminum Rear Shocks, One-Piece Impact Extruded Aluminum Cylinders
- Excellent Corrosion Resistance & Consistent Finish
- Bolt-On System, No Cutting or Welding Necessary

ICON’s patented Delta Joint system is a heavy-duty high angle ball joint, featuring the durability of a ball joint as well as the performance characteristics of a uniball, offering you the best of both worlds. In a zinc-plated housing with a grease seal, the Delta Joint is resistant to corrosion and contaminants. Tubular upper control arms retain your factory alignment spec range while improving strength and durability.

Additional Information:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5” with 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625” Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33” x 11.50”
- Larger Tires May Fit with Fender Trimming/Modification
- Shocks Fully Serviceable. Coilover Heights Indicated for Stock-Equipped Vehicle

Vehicle Fitment:
- 2009-2013 Ford F-150
- 4-Wheel Drive Models
