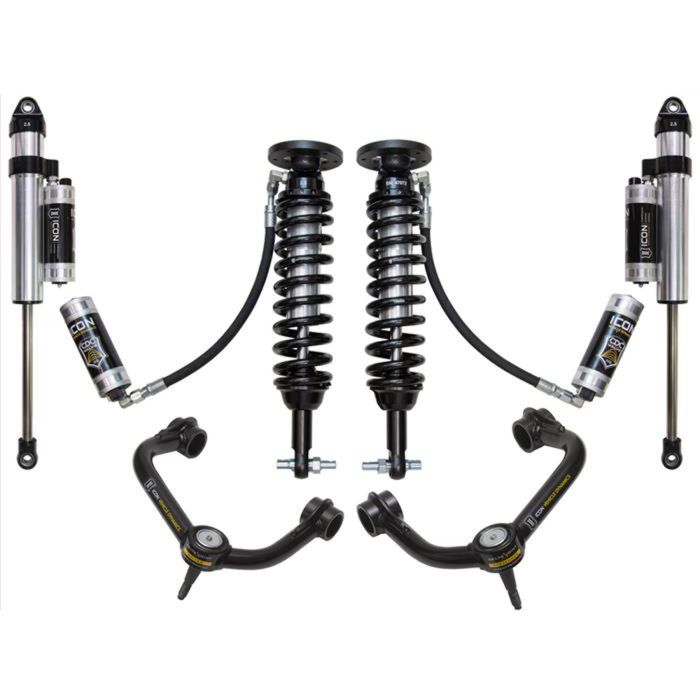

ICON Vehicle Dynamics Stage 5 Suspension System Tubular 1.75-3” Lift 2WD F-150 2015-2020

Unlock next-level vehicle control and ride quality with the ICON Vehicle Dynamics Stage 5 Tubular Suspension System. To increase wheel travel and damping ability, this kit utilizes vehicle-specific tuned front and rear shocks that provide 1.75-3” of additional lift over stock. This setup means that you can utilize larger and more aggressive wheels for improved off-road performance. Tubular upper control arms help retain your factory alignment spec range, increase caster over stock, while also providing additional strength and durability.

Features & Benefits:
- Heavy-Duty, High-Angle Delta Joint
- Increased Wheel Travel & Ride Quality Over Stock
- Improved Suspension Performance
- Retains Factory Towing Capacity
- Vehicle-Specific Tuned Front & Rear Shocks
- Superior Damping & Vehicle Control
- Adjustable Coilovers Yield 1.75-3” Lift Height
- ICON CDCV-Equipped Front & Rear Shocks
- Full Shock Compression Tuneability
- Tubular Upper Control Arms
- Additional Strength, Durability, Adjustability, & Improved Alignment
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Bodies with 7/8” Shafts
- FK Rod End Bearings for Extended Longevity & Minimal Deflection
- 2.5 Aluminum Rear Shocks, One-Piece Impact Extruded Aluminum Cylinders
- Excellent Corrosion Resistance & Consistent Finish
- Bolt-On System, No Cutting or Welding Necessary

Each 2.5” coilover shock features an external remote reservoir to combat damping fade and retain performance during heavy use. ICON’s CDC Valve upgrade allows you to fine-tune your ride with ten soft-to-hard settings to get the highest performing and most comfortable ride possible. This kit utilizes ICON’s patented Delta Joint, combining the best parts of traditional uniball and ball joint designs, forming a heavy-duty high-angle ball joint for durable performance.

Additional Information:
- OEM Wheels & Tires Fitment: Not Compatible with All OE Wheel/Tire Combinations
- Aftermarket Wheels with Lower Offset/Less Backspace Recommended
- Recommended Aftermarket Wheels: 17x8.5” with 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625” Backspace / 16 Offset
- Recommended Aftermarket Tires: 33” x 11.50”
- Tires Larger than 33” x 11.50” May Fit with Fender Trimming and Modifications
- Shocks Are Fully Serviceable. Coilover Heights Indicated for Stock-Equipped Vehicle
- Included Tubular Front Upper Control Arms are Optimized for Heights 1.75-3” Over Stock
- Models Equipped with Power-Stroke Diesel Engines Will Have Lift Height Range of 1.25-2.5”
- Included Rear Shocks are Compatible with 0-1” of Rear Lift Over Stock

Vehicle Fitment:
- 2015-2020 Ford F-150s
- 2-Wheel Drive Models
