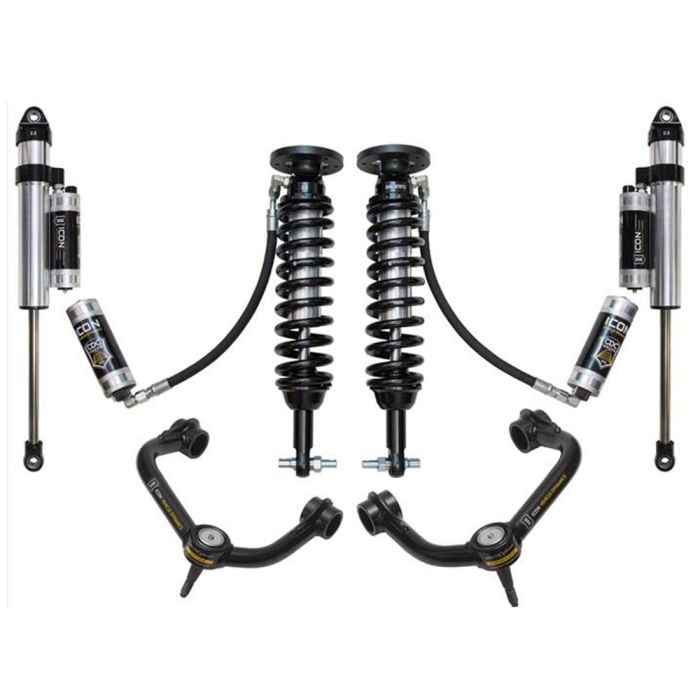

ICON Vehicle Dynamics Stage 5 Suspension System Tubular 2-2.63” Lift 4-Wheel Drive F-150 2015-2020

Unlock an upgraded driving experience with the Stage 5 Suspension System from ICON Vehicle Dynamics. As an ideal option for drivers of 2015-2020 F-150s, this system boasts improved wheel travel and damping ability. Thanks to the adjustable coilovers, you can achieve lift yields of between 2-2.63” over stock. And with corrosion-resistant CAD-plated shock bodies and 7/8” shafts, you can rest easy knowing that your vehicle’s shocks are built to last. Plus, both the front and rear shocks are custom-tuned to deliver superior damping and exceptional vehicle control.

Features & Benefits:
- Increased Wheel Travel & Ride Quality Over Stock
- Improved Suspension Performance & Ride Quality
- Retains Factory Towing Capacity
- Vehicle-Specific Tuned Front & Rear Shocks
- Superior Damping & Vehicle Control
- Adjustable Coilovers Yield 2-2.63” Lift Height
- ICON CDCV-Equipped Front & Rear Shocks
- Full Shock Compression Tuneability
- Tubular Upper Control Arms
- Additional Strength, Durability, Adjustability, & Improved Alignment
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Bodies with 7/8” Shafts
- FK Rod End Bearings for Extended Longevity & Minimal Deflection
- 2.5 Aluminum Rear Shocks, One-Piece Impact Extruded Aluminum Cylinders
- Excellent Corrosion Resistance & Consistent Finish
- Bolt-On System, No Cutting or Welding Necessary

With tubular upper control arms, the quality of this kit is undeniable. Even when off-roading over rough terrain, you’ll be confident knowing your truck can handle anything. What sets this kit apart is the patented Delta Joint system that combines both ball joint durability and traditional uniball performance, creating an unbeatable high ball joint. All of this is encased in a zinc-plated housing and a heavy-duty grease seal, keeping your Delta Joints safe from any environmental impact. Not only is this kit durable, but its grease seal ensures that operation is noise-free.

Additional Information:
- OEM Wheels & Tires fitment: Not Compatible with All OE Wheel/Tire Combinations
- Aftermarket Wheels with Lower Offset/Backspace Recommended
- Recommended Aftermarket Wheels: 17x8.5” with 5.00” Backspace/6mm Offset
- Recommended Aftermarket Wheels: 18x9” with 5.25” Backspace/6mm Offset
- Recommended Aftermarket Wheels: 20x9” with 5.625 Backspace/16mm Offset
- Recommended Aftermarket Tires: 33” x 11.50”
- Tires Larger than 33” May Require Trimming/Modifications
- Shocks Fully Serviceable. Coilover Heights Indicated for Stock Equipped Vehicle
- Will NOT Work with Factory Installed Electronically Controlled Suspension
- Included Rear Shocks Compatible with 0-1” of Rear Lift Over Stock
- Models Equipped with Power-Stroke Diesel Engines will Have Lift Height Range of 1.5-2.13” Over Stock

Vehicle Fitment:
- 2015-2020 Ford F-150s
- Four-Wheel Drive Models
