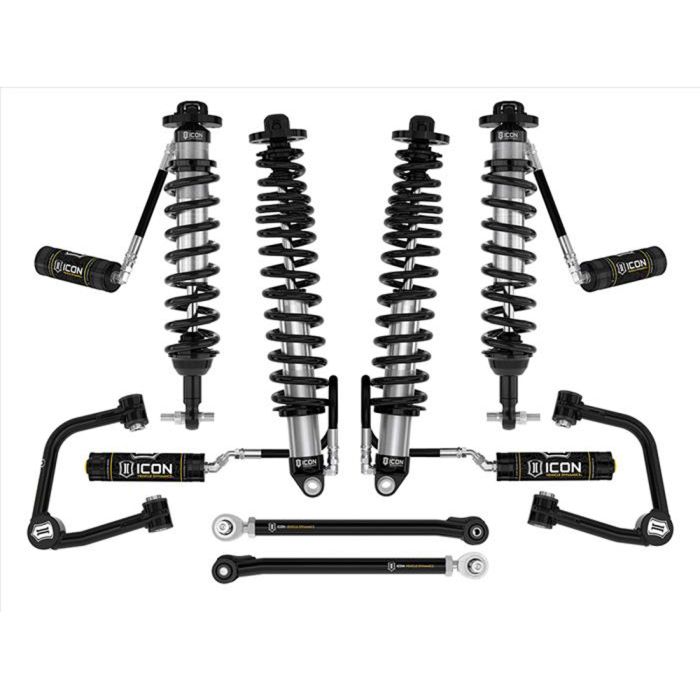

ICON Vehicle Dynamics Stage 5 Suspension System Tubular 3-4" Lift Bronco Non-Sasquatch 21-26

If you are looking to take your 2021-2026 Bronco to the next level, consider the Stage 5 Lift Suspension System from ICON Vehicle Dynamics. This system is designed to enhance the handling and performance of your Bronco by freeing up the rear suspension articulation while also adding strength and clearance. One of the key features of this system is the use of tubular rear lower suspension links, which allow for free articulation and ride quality using dual-durometer greaseless bushings and large FK rod ends. The tubular upper control arms are also highly adjustable, giving you the opportunity to fine-tune your caster and camber adjustments on the fly. Take your Bronco's capabilities to new heights with the Stage 5 Lift Suspension System.

Features & Benefits:
- Improved Suspension Performance & Ride Quality
- Up to 11.5” Front & 14” Rear Wheel Travel with 35” Tires
- Vehicle-Specific Tuned Remote Reservoir Front & Rear Coilovers
- Remote Reservoirs Increase Shock Oil Volume & Heat Dissipation
- Superior Damping and Vehicle Control
- Adjustable Coilovers Yield 3-4” Front & 2-3” Rear Lift
- PTFE-Lined Spherical Bearings & Application Specific Hardware
- 6061 Aircraft-Grade Aluminum CNC-Machined Components
- Corrosion-Resistant CAD-Plated Coilover Shock Bodies
- ICON-Engineered Coil Springs with Triple-Rate Rear Coil Design
- High-Strength Alloy CNC-Machined Lower Bar Pins
- Tubular Upper Control Arms Provide Caster Correction
- Tubular Rear Lower Links Improve Rear End Articulation
- On-Vehicle Pinion Angle Adjustment
- 100% Bolt-On Design, No Drilling, Cutting, or Welding
- Made in the USA

When it comes to optimizing your off-road vehicle's suspension, custom-valved remote reservoir coilover shocks can make all the difference. Not only do they improve ride quality on and off-road, but they also allow for maximum wheel travel. The added shock oil of the remote reservoir provides increased surface area for heat dissipation, which reduces the risk of overheating and damper fade. This means sustained performance while conquering even the toughest rock trails. With ICON's Stage 5 Suspension System, you'll experience 11.5" of front suspension travel and 14" in the rear, all while running 35x12.50" tires. So hit the trails with confidence, knowing that your vehicle is equipped with the best suspension for the job.

Additional Information:
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: 17x8.5” with 5.75” Backspace/25mm Offset
- Recommended Aftermarket Wheels: 18x9” with 6.00” Backspace/25mm Offset
- Recommended Aftermarket Tires: 35” x 12.50”
- 37” Tires Require Coilover Bump Stop Spacers & Minor Trimming
- Shocks are Fully Serviceable. Light Heights Indicated for Stock-Equipped Vehicles
- 2-Door Models will Sit Taller than 4-Door Models
- When Running 37” Tires, Use Up Travel Limiters P/N: 611075 in Front
- When Running 37” Tires, Use Up Travel Limiters P/N: 611074 in Rear
- Lift Heights & App Notes Based on Non-Sasquatch Equipped Vehicles
- Recommend High-Clearance Crash Bars P/N: 4200 on Non-Sasquatch Vehicle with 35” Tires
- When Running 37” Tires Crash Bar Removal May Be Required, Not Recommended
- Tripe-Rate Rear Coils Optimized for Improved Suspension Performance & Ride Quality for Near-Stock Weight Bronco. Their Softer Initial Spring Rates Will Net Lower than Advertised Ride Heights as Weight is Added to Rear of Vehicle. For Heavier Equipped Broncos, Consider P/N: K40005X
- Bronco Everglades Will Have Front Lift Height Range of 1.5-2.5” Over Stock.

Vehicle Fitment:
- 2021-2026 Broncos
- Base, Big Bend, Outer Banks, & Black Diamond Trim Levels
* Will NOT Fit Models with Sasquatch Suspension
* Will NOT Fit Bronco Raptor
